strategy_dpo_ctx.h File Reference

#include <vnet/dpo/dpo.h>
#include <vnet/fib/fib_table.h>
#include "params.h"
#include "faces/face.h"

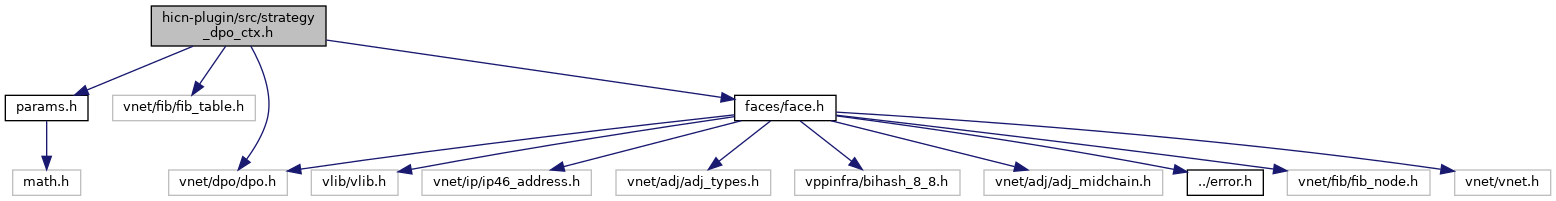

Include dependency graph for strategy_dpo_ctx.h:

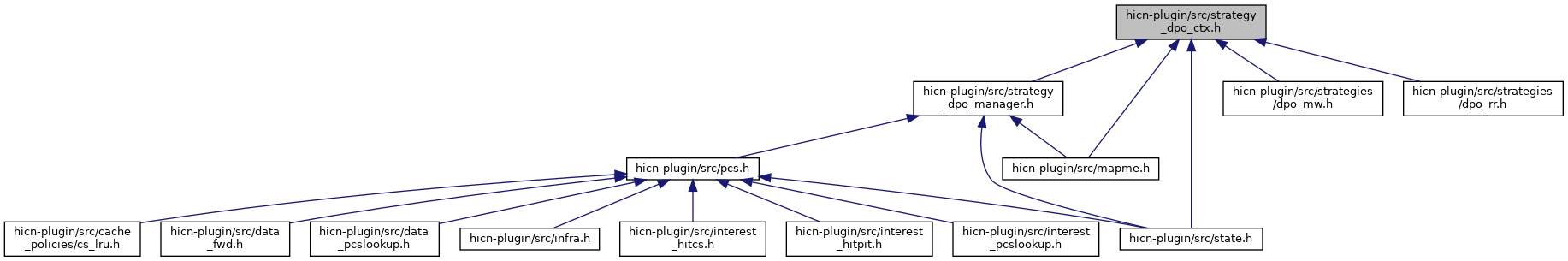

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	HICN_FIB_TABLE   10
#define	NEXT_HOP_INVALID   ~0
#define	INIT_SEQ   0

Functions
struct	__attribute__ ((packed)) hicn_dpo_ctx_s
	Structure representing a face. It containes the fields shared among all the types of faces as well it leaves some space for storing additional information specific to each type. More...
always_inline void	init_dpo_ctx (hicn_dpo_ctx_t *dpo_ctx, const hicn_face_id_t *next_hop, int nh_len, dpo_type_t dpo_type, dpo_proto_t proto)
	Initialize the hICN dpo ctx. More...
void	hicn_strategy_init_dpo_ctx_pool (void)
	Initialize the pool containing the hICN dpo ctx. More...
hicn_dpo_ctx_t *	hicn_strategy_dpo_ctx_alloc ()
	Allocate a new hICN dpo ctx from the pool.
hicn_dpo_ctx_t *	hicn_strategy_dpo_ctx_get (index_t index)
	Retrieve an existing hICN dpo ctx from the pool.
index_t	hicn_strategy_dpo_ctx_get_index (hicn_dpo_ctx_t *cd)
	Retrieve the index of the hICN dpo ctx.
void	hicn_strategy_dpo_ctx_lock (dpo_id_t *dpo)
	Lock the dpo of a strategy ctx. More...
void	hicn_strategy_dpo_ctx_unlock (dpo_id_t *dpo)
	Unlock the dpo of a strategy ctx. More...
int	hicn_strategy_dpo_ctx_add_nh (hicn_face_id_t nh, hicn_dpo_ctx_t *dpo_ctx, u8 *pos)
	Add or update a next hop in the dpo ctx. More...
int	hicn_strategy_dpo_ctx_del_nh (hicn_face_id_t face_id, hicn_dpo_ctx_t *dpo_ctx)
	Delete a next hop in the dpo ctx. More...
	STATIC_ASSERT (sizeof(hicn_dpo_ctx_t)<=2 *CLIB_CACHE_LINE_BYTES, "sizeof hicn_dpo_ctx_t is greater than 128B")

Variables
	hicn_dpo_ctx_t
hicn_dpo_ctx_t *	hicn_strategy_dpo_ctx_pool

Detailed Description

This file implements the general hICN DPO ctx (shared among all the strategies).

An hICN DPO ctx contains the list of next hops, auxiliaries fields to maintain the dpo, map-me specifics (tfib_entry_count and seq), the dpo_type and 64B to let each strategy to store additional information. Each next hop is an hicn_face_id_t that refers to an index for an hICN face. The dpo_type is used to identify the strategy and to retrieve the vft corresponding to the strategy (see strategy.h) and to the dpo ctx (see strategy_dpo_manager.h)

Function Documentation

__attribute__()

struct __attribute__

(

(packed)

)

Structure representing a face. It containes the fields shared among all the types of faces as well it leaves some space for storing additional information specific to each type.

Key definition for the mhash table. An face is uniquely identified by ip address, the interface id and a dpo pointing to the next node in the vlib graph. The ip address can correspond to the remote ip address of the next hicn hop, or to the local address of the receiving interface. The former is used to retrieve the incoming face when an interest is received, the latter when the arring packet is a data. If the face is a regular face In case of iface, the following structure can be filled in different ways:

• dpo equal to DPO_INVALID when the iface is a regular hICN iface
• in case of udp_tunnel dpo = { .dpoi_index = tunnel_id, .dpoi_type = DPO_FIRST, //We don't need the type, we leave it invalid .dpoi_proto = DPO_PROTO_IP4 or DPO_PROTO_IP6, .dpoi_next_node = HICN6_IFACE_OUTPUT_NEXT_UDP4_ENCAP or HICN6_IFACE_OUTPUT_NEXT_UDP6_ENCAP or HICN4_IFACE_OUTPUT_NEXT_UDP4_ENCAP or HICN4_IFACE_OUTPUT_NEXT_UDP6_ENCAP }

hicn_strategy_dpo_ctx_add_nh()

int hicn_strategy_dpo_ctx_add_nh	(	hicn_face_id_t	nh,
		hicn_dpo_ctx_t *	dpo_ctx,
		u8 *	pos
	)

Add or update a next hop in the dpo ctx.

This function is meant to be used in the control plane and not in the data plane, as it is not optimized for the latter.

Parameters

nh	Next hop to insert in the dpo ctx
dpo_ctx	Dpo ctx to update with the new or updated next hop
pos	Return the position of the nh that has been added

Returns

HICN_ERROR_NONE if the update or insert was fine, otherwise HICN_ERROR_DPO_CTX_NOT_FOUND

hicn_strategy_dpo_ctx_del_nh()

int hicn_strategy_dpo_ctx_del_nh	(	hicn_face_id_t	face_id,
		hicn_dpo_ctx_t *	dpo_ctx
	)

Delete a next hop in the dpo ctx.

Parameters

face_id	Face identifier of the next hop
dpo_ctx	Dpo ctx to update by removing the face

Returns

HICN_ERROR_NONE if the update or insert was fine, otherwise HICN_ERROR_DPO_CTS_NOT_FOUND

hicn_strategy_dpo_ctx_lock()

void hicn_strategy_dpo_ctx_lock

(

dpo_id_t *

dpo

)

Lock the dpo of a strategy ctx.

Parameters

dpo	Identifier of the dpo of the strategy ctx

hicn_strategy_dpo_ctx_unlock()

void hicn_strategy_dpo_ctx_unlock

(

dpo_id_t *

dpo

)

Unlock the dpo of a strategy ctx.

Parameters

dpo	Identifier of the dpo of the strategy ctx

hicn_strategy_init_dpo_ctx_pool()

void hicn_strategy_init_dpo_ctx_pool

(

void

)

Initialize the pool containing the hICN dpo ctx.

init_dpo_ctx()

always_inline void init_dpo_ctx	(	hicn_dpo_ctx_t *	dpo_ctx,
		const hicn_face_id_t *	next_hop,
		int	nh_len,
		dpo_type_t	dpo_type,
		dpo_proto_t	proto
	)

Initialize the hICN dpo ctx.

Parameters

dpo_ctx	Pointer to the hICN dpo ctx to initialize
next_hop	List of netx hops to store in the dpo ctx
nh_len	Number of elements in the list of next hops
dpo_type	Type of dpo. It identifies the strategy.
