strategy.h File Reference

#include "hicn.h"
#include "hashtb.h"
#include "mgmt.h"
#include "faces/face.h"

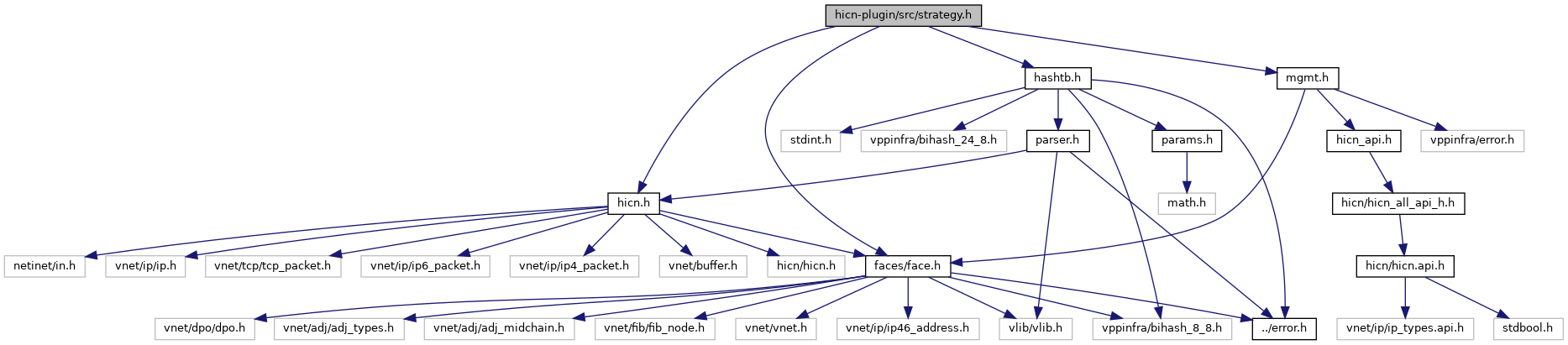

Include dependency graph for strategy.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	hicn_strategy_trace_t
struct	hicn_strategy_vft_s

Typedefs
typedef struct hicn_strategy_vft_s	hicn_strategy_vft_t

Enumerations
enum	hicn_strategy_next_t {   HICN_STRATEGY_NEXT_INTEREST_HITPIT, HICN_STRATEGY_NEXT_INTEREST_HITCS, HICN_STRATEGY_NEXT_INTEREST_FACE4, HICN_STRATEGY_NEXT_INTEREST_FACE6,   HICN_STRATEGY_NEXT_ERROR_DROP, HICN_STRATEGY_N_NEXT }

Variables
vlib_node_registration_t	hicn_strategy_node

Detailed Description

A strategy is defined as a dpo and a set of function (vft) that will be called during the packet processing. A strategy is associated to an entry in the fib by assigning the corresponding dpo to the fib entry. The dpo points to a hICN dpo context (ctx) which contains the information needed by the strategy to compute the next hop. Each strategy hash its own dpo type, which means that the dpo_type uniquely identifies a strategy and its vft. The strategy node will use the dpo_type to retrieve the corresponding vft. Here we provide:

• a template for the callbacks to implement in order to create a new strategy (hicn_fwd_strategy_t)
• a default implementation for the strategy node which will call the strategy functions while processing the interest packets
