A forwarding entry in the FIB table. More...

#include <hicn/core/name.h>
#include <hicn/strategies/strategyImpl.h>

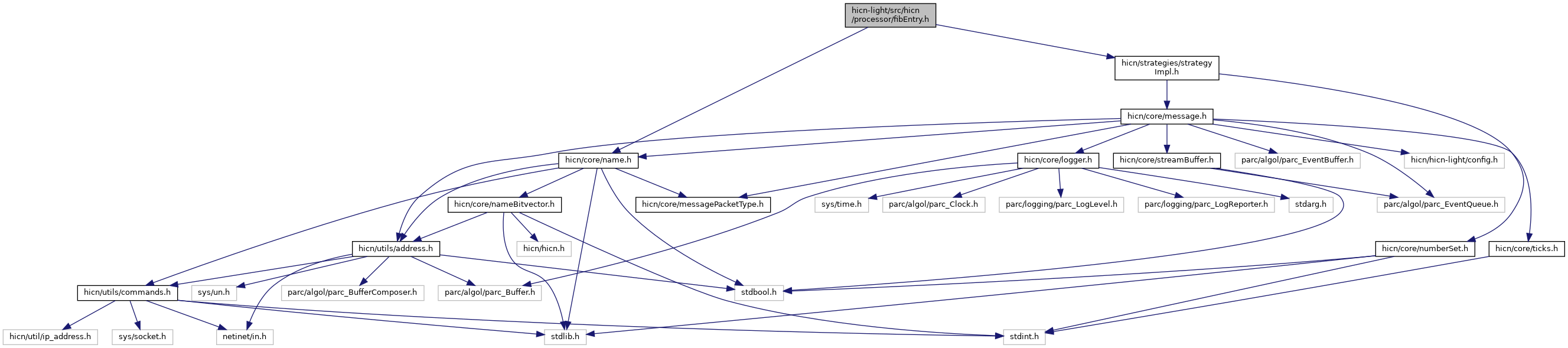

Include dependency graph for fibEntry.h:

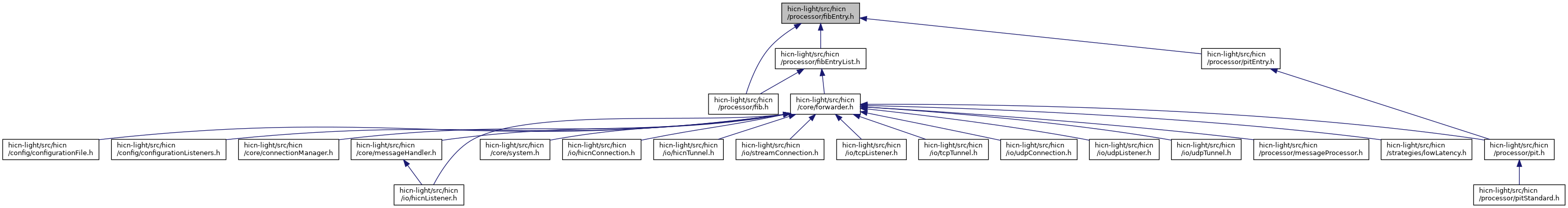

This graph shows which files directly or indirectly include this file:

Typedefs
typedef struct fib_entry	FibEntry

Functions
FibEntry *	fibEntry_Create (Name *name, strategy_type fwdStrategy)

void	fibEntry_Release (FibEntry **fibEntryPtr)

FibEntry *	fibEntry_Acquire (const FibEntry *fibEntry)

void	fibEntry_SetStrategy (FibEntry fibEntry, strategy_type strategy, unsigned related_prefixes_len, Name *related_prefixes)

void	fibEntry_AddNexthop (FibEntry *fibEntry, unsigned connectionId)

void	fibEntry_RemoveNexthopByConnectionId (FibEntry *fibEntry, unsigned connectionId)

size_t	fibEntry_NexthopCount (const FibEntry *fibEntry)

const NumberSet *	fibEntry_GetNexthops (const FibEntry *fibEntry)

void	fibEntry_ReceiveObjectMessage (const FibEntry fibEntry, const NumberSet egressId, const Message *objectMessage, Ticks pitEntryCreation, Ticks objReception)

void	fibEntry_OnTimeout (const FibEntry fibEntry, const NumberSet egressId)

const NumberSet *	fibEntry_GetNexthopsFromForwardingStrategy (const FibEntry fibEntry, const Message interestMessage)

strategy_type	fibEntry_GetFwdStrategyType (const FibEntry *fibEntry)

StrategyImpl *	fibEntry_GetFwdStrategy (const FibEntry *fibEntry)

Name *	fibEntry_GetPrefix (const FibEntry *fibEntry)

Detailed Description

A forwarding entry in the FIB table.

A Forwarding Information Base (FIB) entry (FibEntry) is a set of nexthops for a name. It also indicates the forwarding strategy.

Each nexthop contains the ConnectionId assocaited with it. This could be something specific like a MAC address or point-to-point tunnel. Or, it could be something general like a MAC group address or ip multicast overlay.

See strategy.h for a description of forwarding strategies. In short, a strategy is the algorithm used to select one or more nexthops from the set of available nexthops.

Each nexthop also contains a void* to a forwarding strategy data container. This allows a strategy to keep proprietary information about each nexthop.

Function Documentation

◆ fibEntry_Acquire()

FibEntry* fibEntry_Acquire ( const FibEntry * fibEntry )

Returns a reference counted copy of the fib entry

The reference count is increased by one. The returned value must be released via fibEnty_Release().

Parameters

[in] fibEntry An allocated FibEntry

Returns: non-null A reference counted copy of the fibEntry

◆ fibEntry_GetNexthops()

const NumberSet* fibEntry_GetNexthops ( const FibEntry * fibEntry )

@function fibEntry_GetNexthops @abstract Returns the nexthop set of the FIB entry. You must Acquire if it will be saved. @discussion Returns the next hop set for the FIB entry.

◆ fibEntry_GetPrefix()

Name* fibEntry_GetPrefix ( const FibEntry * fibEntry )

@function fibEntry_GetPrefix @abstract Returns a copy of the prefix.

Returns: A reference counted copy that you must destroy

◆ fibEntry_Release()

void fibEntry_Release ( FibEntry ** fibEntryPtr )

Decrements the reference count by one, and destroys the memory after last release
