#include "hashtb.h"#include "face_db.h"#include "strategy_dpo_manager.h"#include "error.h"#include "cache_policies/cs_policy.h"#include "faces/face.h"

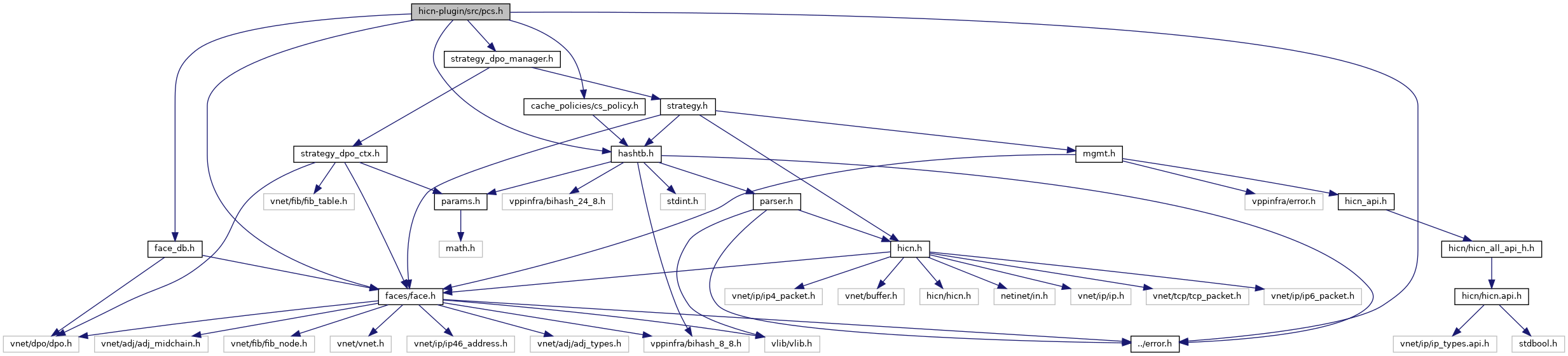

Include dependency graph for pcs.h:

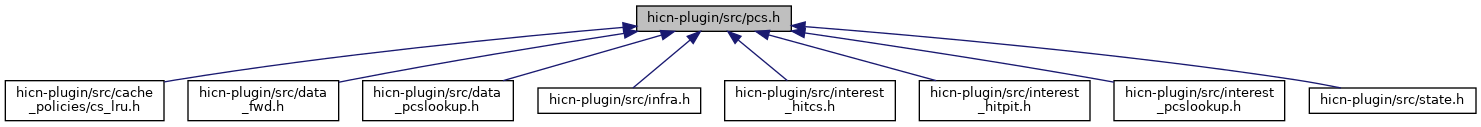

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | hicn_pcs_entry_s |
| struct | hicn_pit_cs_s |
Typedefs | |
| typedef struct hicn_pcs_entry_s | hicn_pcs_entry_t |
| typedef struct hicn_pit_cs_s | hicn_pit_cs_t |
Functions | |
| struct | __attribute__ ((packed)) hicn_pcs_shared_s |
| Structure representing a face. It containes the fields shared among all the types of faces as well it leaves some space for storing additional information specific to each type. More... | |
| int | hicn_pit_create (hicn_pit_cs_t *p, u32 num_elems) |
| always_inline void | hicn_pit_to_cs (vlib_main_t *vm, hicn_pit_cs_t *pitcs, hicn_pcs_entry_t *pcs_entry, hicn_hash_entry_t *hash_entry, hicn_hash_node_t *node, const hicn_dpo_vft_t *dpo_vft, dpo_id_t *hicn_dpo_id, hicn_face_id_t inface_id, u8 is_appface) |
| always_inline void | hicn_pcs_cs_update (vlib_main_t *vm, hicn_pit_cs_t *pitcs, hicn_pcs_entry_t *old_entry, hicn_pcs_entry_t *entry, hicn_hash_node_t *node) |
| always_inline void | hicn_pcs_cs_delete (vlib_main_t *vm, hicn_pit_cs_t *pitcs, hicn_pcs_entry_t **pcs_entry, hicn_hash_node_t **node, hicn_hash_entry_t *hash_entry, const hicn_dpo_vft_t *dpo_vft, dpo_id_t *hicn_dpo_id) |
| always_inline int | hicn_pcs_cs_insert (vlib_main_t *vm, hicn_pit_cs_t *pitcs, hicn_pcs_entry_t *entry, hicn_hash_node_t *node, hicn_hash_entry_t **hash_entry, u64 hashval, u32 *node_id, index_t *dpo_ctx_id, u8 *vft_id, u8 *is_cs, u8 *hash_entry_id, u32 *bucket_id, u8 *bucket_is_overflow) |
| always_inline int | hicn_pcs_cs_insert_update (vlib_main_t *vm, hicn_pit_cs_t *pitcs, hicn_pcs_entry_t *entry, hicn_hash_node_t *node, hicn_hash_entry_t **hash_entry, u64 hashval, u32 *node_id, index_t *dpo_ctx_id, u8 *vft_id, u8 *is_cs, u8 *hash_entry_id, u32 *bucket_id, u8 *bucket_is_overflow, hicn_face_id_t inface) |
| always_inline int | hicn_pcs_pit_insert (hicn_pit_cs_t *pitcs, hicn_pcs_entry_t *entry, hicn_hash_node_t *node, hicn_hash_entry_t **hash_entry, u64 hashval, u32 *node_id, index_t *dpo_ctx_id, u8 *vft_id, u8 *is_cs, u8 *hash_entry_id, u32 *bucket_id, u8 *bucket_is_overflow) |
| always_inline void | hicn_pcs_pit_delete (hicn_pit_cs_t *pitcs, hicn_pcs_entry_t **pcs_entryp, hicn_hash_node_t **node, vlib_main_t *vm, hicn_hash_entry_t *hash_entry, const hicn_dpo_vft_t *dpo_vft, dpo_id_t *hicn_dpo_id) |
| always_inline int | hicn_pcs_insert (vlib_main_t *vm, hicn_pit_cs_t *pitcs, hicn_pcs_entry_t *entry, hicn_hash_node_t *node, hicn_hash_entry_t **hash_entry, u64 hashval, u32 *node_id, index_t *dpo_ctx_id, u8 *vft_id, u8 *is_cs, u8 *hash_entry_id, u32 *bucket_id, u8 *bucket_is_overflow) |
| always_inline void | hicn_pcs_delete (hicn_pit_cs_t *pitcs, hicn_pcs_entry_t **pcs_entryp, hicn_hash_node_t **node, vlib_main_t *vm, hicn_hash_entry_t *hash_entry, const hicn_dpo_vft_t *dpo_vft, dpo_id_t *hicn_dpo_id) |
| always_inline void | hicn_pcs_remove_lock (hicn_pit_cs_t *pitcs, hicn_pcs_entry_t **pcs_entryp, hicn_hash_node_t **node, vlib_main_t *vm, hicn_hash_entry_t *hash_entry, const hicn_dpo_vft_t *dpo_vft, dpo_id_t *hicn_dpo_id) |
| always_inline void | hicn_cs_delete_trimmed (hicn_pit_cs_t *pitcs, hicn_pcs_entry_t **pcs_entryp, hicn_hash_entry_t *hash_entry, hicn_hash_node_t **node, vlib_main_t *vm) |
| always_inline void | hicn_pcs_delete_internal (hicn_pit_cs_t *pitcs, hicn_pcs_entry_t **pcs_entryp, hicn_hash_entry_t *hash_entry, hicn_hash_node_t **node, vlib_main_t *vm, const hicn_dpo_vft_t *dpo_vft, dpo_id_t *hicn_dpo_id) |
| always_inline u16 | hicn_infra_seq16_sum (u16 addend1, u16 addend2) |
| always_inline int | hicn_infra_seq16_cmp (u16 a, u16 b) |
| always_inline int | hicn_infra_seq16_lt (u16 a, u16 b) |
| always_inline int | hicn_infra_seq16_le (u16 a, u16 b) |
| always_inline int | hicn_infra_seq16_gt (u16 a, u16 b) |
| always_inline int | hicn_infra_seq16_ge (u16 a, u16 b) |
| always_inline u16 | hicn_infra_ms2clicks (u64 time_ms, u64 ms_per_click) |
| always_inline u16 | hicn_infra_get_fast_exp_time (u64 lifetime_ms) |
| always_inline u16 | hicn_infra_get_slow_exp_time (u64 lifetime_ms) |
Variables | |
| hicn_pcs_shared_t | |
| hicn_pit_entry_t | |
| u16 | hicn_infra_fast_timer |
| u16 | hicn_infra_slow_timer |
Detailed Description
This file implement the PIT and CS which are collapsed in the same structure, thereore an entry is either a PIT entry of a CS entry. The implementation consist of a hash table where each entry of the hash table contains a PIT or CS entry, some counters to maintain the status of the PIT/CS and the reference to the eviction policy for the CS. The default eviction policy id FIFO.
Function Documentation
◆ __attribute__()
| struct __attribute__ | ( | (packed) | ) |
Structure representing a face. It containes the fields shared among all the types of faces as well it leaves some space for storing additional information specific to each type.
Key definition for the mhash table. An face is uniquely identified by ip address, the interface id and a dpo pointing to the next node in the vlib graph. The ip address can correspond to the remote ip address of the next hicn hop, or to the local address of the receiving interface. The former is used to retrieve the incoming face when an interest is received, the latter when the arring packet is a data. If the face is a regular face In case of iface, the following structure can be filled in different ways:
- dpo equal to DPO_INVALID when the iface is a regular hICN iface
- in case of udp_tunnel dpo = { .dpoi_index = tunnel_id, .dpoi_type = DPO_FIRST, //We don't need the type, we leave it invalid .dpoi_proto = DPO_PROTO_IP4 or DPO_PROTO_IP6, .dpoi_next_node = HICN6_IFACE_OUTPUT_NEXT_UDP4_ENCAP or HICN6_IFACE_OUTPUT_NEXT_UDP6_ENCAP or HICN4_IFACE_OUTPUT_NEXT_UDP4_ENCAP or HICN4_IFACE_OUTPUT_NEXT_UDP6_ENCAP }
