hICN name helpers. More...

#include <stdbool.h>
#include <netinet/in.h>
#include <hicn/util/ip_address.h>
#include "common.h"

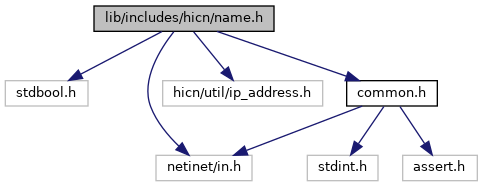

Include dependency graph for name.h:

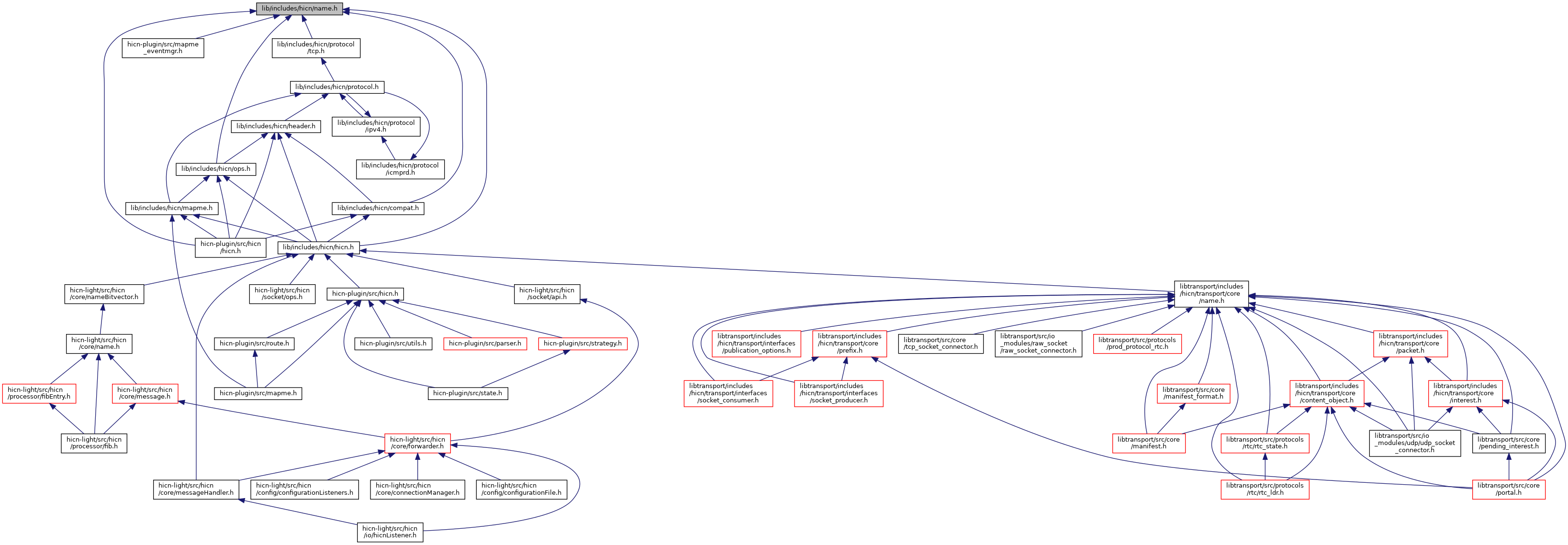

This graph shows which files directly or indirectly include this file:

Classes
struct	hicn_prefix_t

union	hicn_v4_name_t

union	hicn_v6_name_t

struct	hicn_iov_name_t

struct	hicn_name_t

Macros
#define	TCP_SEQNO_LEN 4 /* bytes */

#define	HICN_V4_PREFIX_LEN IPV4_ADDR_LEN

#define	HICN_V6_PREFIX_LEN IPV6_ADDR_LEN

#define	HICN_SEGMENT_LEN TCP_SEQNO_LEN

#define	HICN_V6_NAME_LEN (HICN_V6_PREFIX_LEN + HICN_SEGMENT_LEN) /* 20 bytes */

#define	HICN_V4_NAME_LEN (HICN_V4_PREFIX_LEN + HICN_SEGMENT_LEN) /* 8 bytes */

#define	HICN_NAME_COMPONENT_SIZE 2

#define	UNSPEC 1 << 0

#define	HNT_CONTIGUOUS 1 << 1

#define	HNT_IOV 1 << 2

#define	HNT_INET 1 << 3

#define	HNT_INET6 1 << 4

#define	_is_unspec(name) ((name->type & UNSPEC))

#define	_is_contiguous(name) ((name->type & HNT_CONTIGUOUS) >> 1)

#define	_is_iov(name) ((name->type & HNT_IOV) >> 2)

#define	_is_inet4(name) ((name->type & HNT_INET) >> 3)

#define	_is_inet6(name) ((name->type & HNT_INET6) >> 4)

Typedefs
typedef u32	hicn_name_suffix_t

Enumerations
enum	hicn_name_type_t { HNT_UNSPEC = UNSPEC, HNT_CONTIGUOUS_V4 = HNT_CONTIGUOUS \| HNT_INET, HNT_CONTIGUOUS_V6 = HNT_CONTIGUOUS \| HNT_INET6, HNT_IOV_V4 = HNT_IOV \| HNT_INET, HNT_IOV_V6 = HNT_IOV \| HNT_INET6, HNT_UNSPEC = UNSPEC, HNT_CONTIGUOUS_V4 = HNT_CONTIGUOUS \| HNT_INET, HNT_CONTIGUOUS_V6 = HNT_CONTIGUOUS \| HNT_INET6, HNT_IOV_V4 = HNT_IOV \| HNT_INET, HNT_IOV_V6 = HNT_IOV \| HNT_INET6 }

Functions
int	hicn_name_create (const char ip_address, u32 id, hicn_name_t name)
	Create an hICN name from IP address in presentation format. More...

int	hicn_name_create_from_ip_prefix (const ip_prefix_t prefix, u32 id, hicn_name_t name)
	Create an hICN name from IP address. More...

u8	hicn_name_get_length (const hicn_name_t *name)
	Returns the length of an hICN name. More...

int	hicn_name_compare (const hicn_name_t name_1, const hicn_name_t name_2, bool consider_segment)
	Compare two hICN names. More...

int	hicn_name_hash (const hicn_name_t name, u32 hash, bool consider_suffix)
	Provides a 32-bit hash of an hICN name. More...

int	hicn_name_empty (hicn_name_t *name)
	Test whether an hICN name is empty. More...

int	hicn_name_copy (hicn_name_t dst, const hicn_name_t src)
	Copy an hICN name. More...

int	hicn_name_copy_to_destination (u8 dst, const hicn_name_t src, bool copy_suffix)
	Copy an hICN name to a buffer. More...

int	hicn_name_set_seq_number (hicn_name_t *name, u32 seq_number)
	Sets the segment part of an hICN name. More...

int	hicn_name_get_seq_number (const hicn_name_t name, u32 seq_number)
	Retrieves the segment part of an hICN name. More...

int	hicn_name_to_sockaddr_address (const hicn_name_t name, struct sockaddr ip_address)
	Convert an hICN name to a socket address. More...

int	hicn_name_to_ip_prefix (const hicn_name_t name, ip_prefix_t ip_prefix)
	Convert an hICN name to an IP address. More...

int	hicn_name_ntop (const hicn_name_t src, char dst, size_t len)
	Convert an hICN name to presentation format. More...

int	hicn_name_pton (const char src, hicn_name_t dst)
	Convert an hICN name from presentation format. More...

int	hicn_name_get_family (const hicn_name_t name, int family)
	Returns the IP address family of an hICN name. More...

int	hicn_prefix_create_from_ip_prefix (const ip_prefix_t ip_prefix, hicn_prefix_t prefix)
	Creates an hICN prefix from an IP address. More...

Detailed Description

hICN name helpers.

The purpose of the file is to offer an efficient, platform- and protocol- independent way to manipulate hICN names.

Function Documentation

◆ hicn_name_compare()

int hicn_name_compare	(	const hicn_name_t *	name_1,
		const hicn_name_t *	name_2,
		bool	consider_segment
	)

Compare two hICN names.

Parameters

[in]	name_1	- First name to compare
[in]	name_2	- Second name to compare
[in]	consider_segment	- Flag indicating whether the segment part has to be considered

Returns: An integer less than, equal to, or greater than zero if name_1 is found, respectively, to be lest than, to match, or be greater than name_2 based on numeric order.

◆ hicn_name_copy()

int hicn_name_copy	(	hicn_name_t *	dst,
		const hicn_name_t *	src
	)

Copy an hICN name.

Parameters

[out]	dst	- Destination name
[in]	src	- Source name to copy

Returns: hICN error code

◆ hicn_name_copy_to_destination()

int hicn_name_copy_to_destination	(	u8 *	dst,
		const hicn_name_t *	src,
		bool	copy_suffix
	)

Copy an hICN name to a buffer.

Parameters

[out]	dst	- Destination buffer
[in]	src	- Source name to copy
[in]	copy_suffix	- Flag indicating whether the suffix has to be considered

◆ hicn_name_create()

int hicn_name_create	(	const char *	ip_address,
		u32	id,
		hicn_name_t *	name
	)

Create an hICN name from IP address in presentation format.

Parameters

[in]	ip_address	- IP address
[in]	id	- Segment identifier
[out]	Resulting	hICN name

Returns: hICN error code

◆ hicn_name_create_from_ip_prefix()

int hicn_name_create_from_ip_prefix	(	const ip_prefix_t *	prefix,
		u32	id,
		hicn_name_t *	name
	)

Create an hICN name from IP address.

Parameters

[in]	ip_address	- IP address
[in]	id	Segment - identifier
[out]	Resulting	- hICN name

Returns: hICN error code

◆ hicn_name_empty()

int hicn_name_empty ( hicn_name_t * name )

Test whether an hICN name is empty.

Parameters

[in] name - Name to test

Returns: 0 if the name is empty, any other value otherwise (implementation returns 1)

◆ hicn_name_get_family()

int hicn_name_get_family	(	const hicn_name_t *	name,
		int *	family
	)

Returns the IP address family of an hICN name.

Parameters

[in]	name	- Name to lookup
[out]	family	- Resulting IP address family (AF_INET or AF_INET6)

Returns: hICN error code

◆ hicn_name_get_length()

u8 hicn_name_get_length ( const hicn_name_t * name )

Returns the length of an hICN name.

Parameters

[in] name - hICN name

Returns: Name length

◆ hicn_name_get_seq_number()

int hicn_name_get_seq_number	(	const hicn_name_t *	name,
		u32 *	seq_number
	)

Retrieves the segment part of an hICN name.

Parameters

[in,out]	name	- hICN name
[in]	seq_number	- Segment identifier

Returns: hICN error code

◆ hicn_name_hash()

int hicn_name_hash	(	const hicn_name_t *	name,
		u32 *	hash,
		bool	consider_suffix
	)

Provides a 32-bit hash of an hICN name.

Parameters

[in]	name	- Name to hash
[out]	hash	- Resulting hash
[in]	consider_suffix	- Consider the suffix in the hash computation

Returns: hICN error code

◆ hicn_name_ntop()

int hicn_name_ntop	(	const hicn_name_t *	src,
		char *	dst,
		size_t	len
	)

Convert an hICN name to presentation format.

Parameters

[in]	src	- Name to convert
[out]	dst	- Buffer to receive the name in presentation format
[in]	len	- Number of bytes available in the buffer

Returns: hICN error code

◆ hicn_name_pton()

int hicn_name_pton	(	const char *	src,
		hicn_name_t *	dst
	)

Convert an hICN name from presentation format.

Parameters

[in]	src	- Name in presentation format to parse
[out]	dst	- Resulting name

Returns: hICN error code

◆ hicn_name_set_seq_number()

int hicn_name_set_seq_number	(	hicn_name_t *	name,
		u32	seq_number
	)

Sets the segment part of an hICN name.

Parameters

[in,out]	name	- hICN name to modify
[in]	seq_number	- Segment identifier

Returns: hICN error code

◆ hicn_name_to_ip_prefix()

int hicn_name_to_ip_prefix	(	const hicn_name_t *	name,
		ip_prefix_t *	ip_prefix
	)

Convert an hICN name to an IP address.

Parameters

[in]	name	- Name to convert
[out]	ip_address	- Resulting IP address

Returns: hICN error code

◆ hicn_name_to_sockaddr_address()

int hicn_name_to_sockaddr_address	(	const hicn_name_t *	name,
		struct sockaddr *	ip_address
	)

Convert an hICN name to a socket address.

Parameters

[in]	name	- Name to convert
[out]	ip_address	- Resulting socket address

Returns: hICN error code

◆ hicn_prefix_create_from_ip_prefix()

int hicn_prefix_create_from_ip_prefix	(	const ip_prefix_t *	ip_prefix,
		hicn_prefix_t *	prefix
	)

Creates an hICN prefix from an IP address.

Parameters

[in]	ip_address	- Input IP address
[out]	prefix	- Resulting prefix

Returns: hICN error code
