Base hICN definitions. More...

#include "common.h"
#include <netinet/in.h>

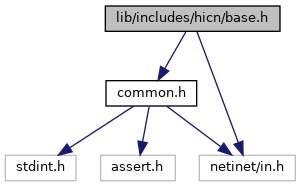

Include dependency graph for base.h:

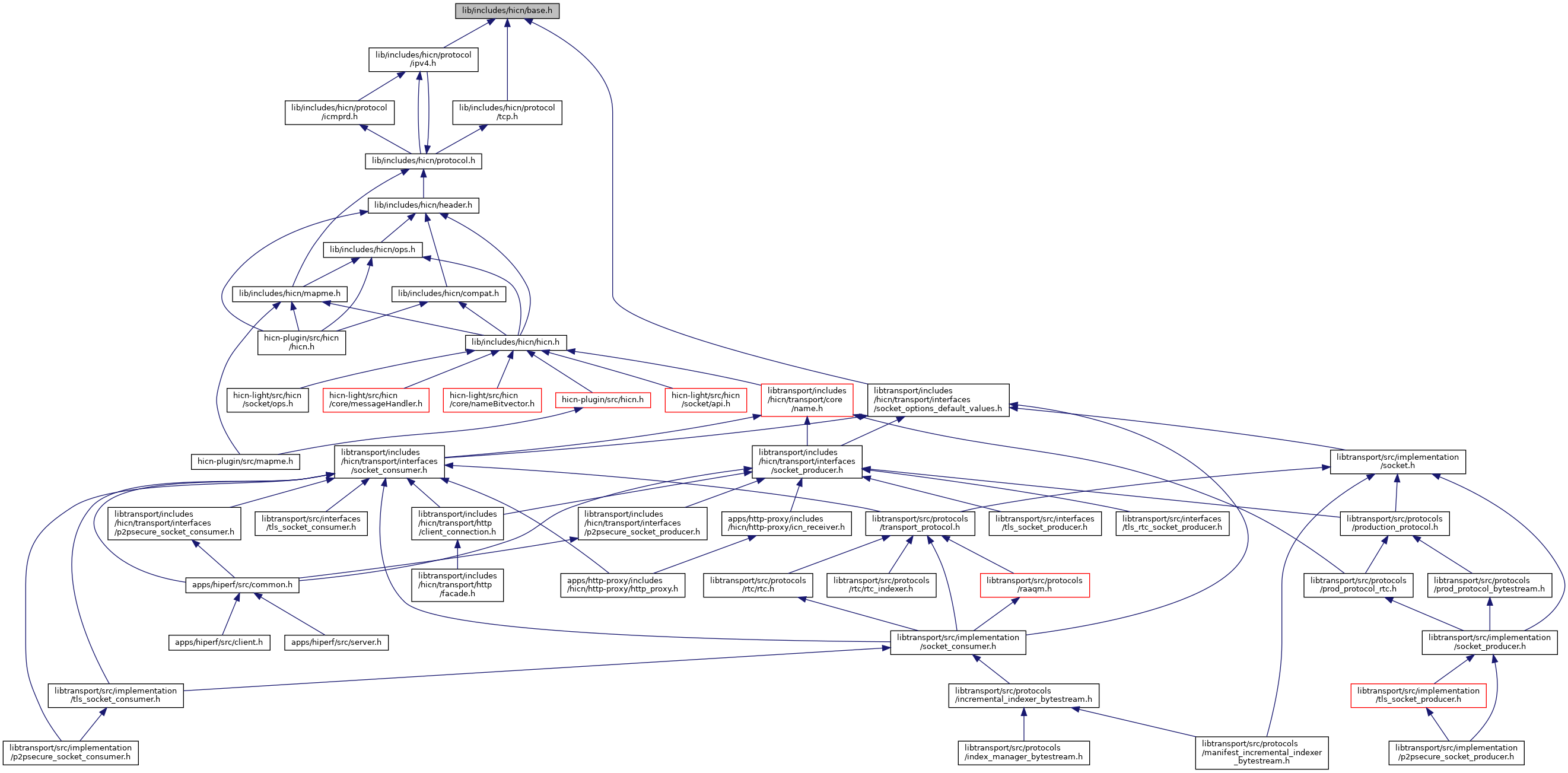

This graph shows which files directly or indirectly include this file:

Classes
union	hicn_type_t
	hICN packet format type More...

Macros
#define	HICN_DEFAULT_TTL 254

#define	HICN_MAX_LIFETIME_SCALED 0xFFFF

#define	HICN_MAX_LIFETIME_MULTIPLIER 0x0F /* 4 bits */

#define	HICN_MAX_LIFETIME HICN_MAX_LIFETIME_SCALED << HICN_MAX_LIFETIME_MULTIPLIER

#define	HICN_TYPE(x, y, z, t) (hicn_type_t) {{ .l1 = x, .l2 = y, .l3 = z, .l4 = t }}

#define	HICN_TYPE_IPV4_TCP HICN_TYPE(IPPROTO_IP, IPPROTO_TCP, IPPROTO_NONE, IPPROTO_NONE)

#define	HICN_TYPE_IPV4_ICMP HICN_TYPE(IPPROTO_IP, IPPROTO_ICMP, IPPROTO_NONE, IPPROTO_NONE)

#define	HICN_TYPE_IPV6_TCP HICN_TYPE(IPPROTO_IPV6, IPPROTO_TCP, IPPROTO_NONE, IPPROTO_NONE)

#define	HICN_TYPE_IPV6_ICMP HICN_TYPE(IPPROTO_IPV6, IPPROTO_ICMPV6, IPPROTO_NONE, IPPROTO_NONE)

#define	HICN_TYPE_IPV4_TCP_AH HICN_TYPE(IPPROTO_IP, IPPROTO_TCP, IPPROTO_AH, IPPROTO_NONE)

#define	HICN_TYPE_IPV4_ICMP_AH HICN_TYPE(IPPROTO_IP, IPPROTO_ICMP, IPPROTO_AH, IPPROTO_NONE)

#define	HICN_TYPE_IPV6_TCP_AH HICN_TYPE(IPPROTO_IPV6, IPPROTO_TCP, IPPROTO_AH, IPPROTO_NONE)

#define	HICN_TYPE_IPV6_ICMP_AH HICN_TYPE(IPPROTO_IPV6, IPPROTO_ICMPV6, IPPROTO_AH, IPPROTO_NONE)

#define	HICN_TYPE_NONE HICN_TYPE(IPPROTO_NONE, IPPROTO_NONE, IPPROTO_NONE, IPPROTO_NONE)

#define	HICN_PATH_LABEL_MASK 0x000000ff
	Path label computations. More...

#define	HICN_PATH_LABEL_SIZE 8

Typedefs
typedef u32	hicn_faceid_t

typedef u8	hicn_pathlabel_t

typedef u32	hicn_lifetime_t

Enumerations
enum	hicn_payload_type_t { HPT_DATA = 0, HPT_MANIFEST = 1, HPT_UNSPEC = 999, HPT_DATA = 0, HPT_MANIFEST = 1, HPT_UNSPEC = 999 }
	hICN Payload type More...

Functions
always_inline int	hicn_type_is_none (hicn_type_t type)
	Check if type is none. More...

always_inline void	update_pathlabel (hicn_pathlabel_t current_label, hicn_faceid_t face_id, hicn_pathlabel_t *new_label)
	Path label update. More...

Detailed Description

Base hICN definitions.

Protocol-independent packet operations.

Macro Definition Documentation

◆ HICN_PATH_LABEL_MASK

#define HICN_PATH_LABEL_MASK 0x000000ff

Path label computations.

Path label is computed by accumulating the identifiers of successive output faces as a Data packet is traveling from its producer back to the consumer originating the Interest.

NOTE: this computation is not (yet) part of the hICN specification.

Enumeration Type Documentation

◆ hicn_payload_type_t

enum hicn_payload_type_t

hICN Payload type

This type distinguishes several types of data packet, which can either carry content data, or Manifest

Function Documentation

◆ hicn_type_is_none()

always_inline int hicn_type_is_none ( hicn_type_t type )

Check if type is none.

Returns: 1 if none, 0 otherwise

◆ update_pathlabel()

always_inline void update_pathlabel	(	hicn_pathlabel_t	current_label,
		hicn_faceid_t	face_id,
		hicn_pathlabel_t *	new_label
	)

Path label update.

Parameters

[in]	current_label	Current pathlabel
[in]	face_id	The face identifier to combine into the path label
[out]	new_label	Computed pathlabel

This function updates the current_label based on the new face_id, and returns
