#include <vlib/vlib.h>
#include <vnet/vnet.h>
#include <vnet/interface.h>
#include "pcs.h"

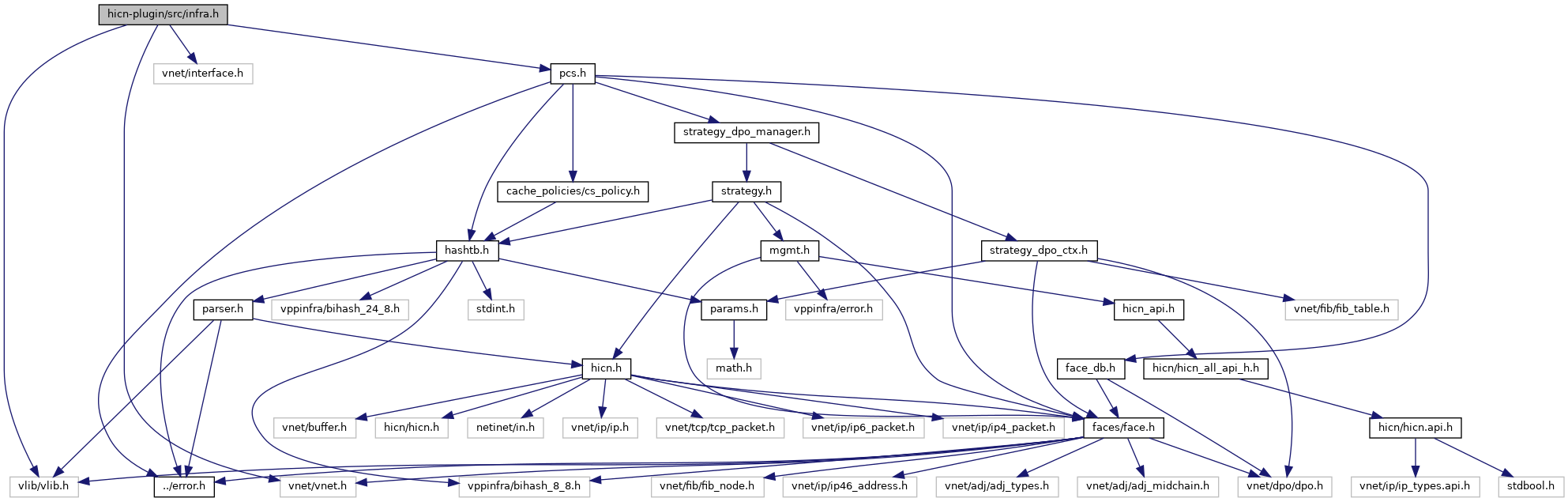

Include dependency graph for infra.h:

Classes
struct	hicn_main_s
	hICN plugin global state. More...

Functions
int	hicn_infra_plugin_enable_disable (int enable_disable, int pit_max_size, f64 pit_max_lifetime_sec_req, int cs_max_size, vnet_link_t link)
	Enable and disable the hicn plugin. More...

Variables
hicn_main_t	hicn_main

int	hicn_infra_fwdr_initialized

u32	hicn_infra_pit_size

u32	hicn_infra_cs_size

vlib_node_registration_t	hicn_interest_pcslookup_node

vlib_node_registration_t	hicn_data_pcslookup_node

vlib_node_registration_t	hicn_data_fwd_node

vlib_node_registration_t	hicn_data_store_node

vlib_node_registration_t	hicn_interest_hitpit_node

vlib_node_registration_t	hicn_interest_hitcs_node

vlib_node_registration_t	hicn_pg_interest_node

vlib_node_registration_t	hicn_pg_data_node

vlib_node_registration_t	hicn_pg_server_node

vlib_node_registration_t	hicn_data_input_ip6_node

vlib_node_registration_t	hicn_data_input_ip4_node

Function Documentation

◆ hicn_infra_plugin_enable_disable()

int hicn_infra_plugin_enable_disable	(	int	enable_disable,
		int	pit_max_size,
		f64	pit_max_lifetime_sec_req,
		int	cs_max_size,
		vnet_link_t	link
	)

Enable and disable the hicn plugin.

Enable the time the hICN plugin and set the forwarder parameters.

Parameters

enable_disable	1 if to enable, 0 otherwisw (currently only enable is supported)
pit_max_size	Max size of the PIT
pit_max_lifetime_sec_req	Maximum timeout allowed for a PIT entry lifetime
cs_max_size	CS size. Must be <= than pit_max_size
cs_reserved_app	Amount of CS reserved for application faces
