route.h File Reference

#include <vlib/vlib.h>
#include <vppinfra/error.h>
#include "hicn.h"
#include "faces/face.h"

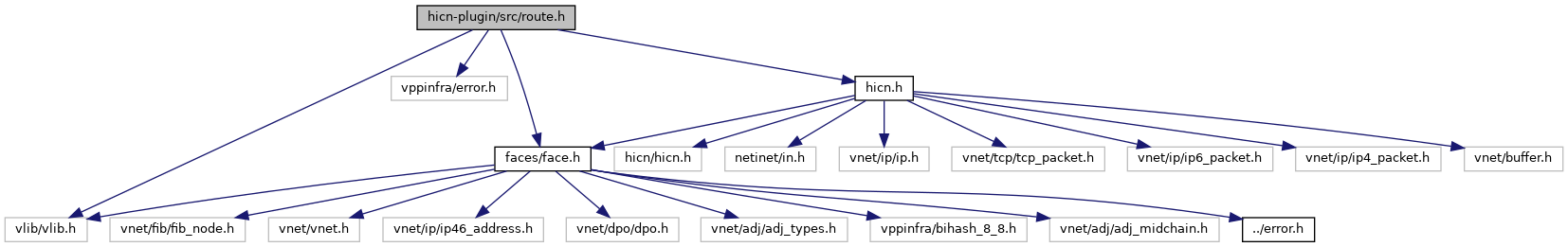

Include dependency graph for route.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	hicn_route_get_dpo (const fib_prefix_t *prefix, const dpo_id_t **hicn_dpo, u32 *fib_index)
int	hicn_route_set_strategy (fib_prefix_t *prefix, u32 strategy_id)
int	ip_nh_add_helper (fib_protocol_t fib_proto, const fib_prefix_t *pfx, ip46_address_t *nh, u32 sw_if)
int	ip_nh_del_helper (fib_protocol_t fib_proto, const fib_prefix_t *rpfx, ip46_address_t *nh, u32 sw_if)
int	hicn_route_enable (fib_prefix_t *prefix)
int	hicn_route_disable (fib_prefix_t *prefix)
void	hicn_route_init ()

Variables
fib_source_t	hicn_fib_src
dpo_type_t	udp_encap_dpo_types [FIB_PROTOCOL_MAX]

Detailed Description

hICN uses a specific vrf to install the routes for a prefix has been enabled to be hicn. It considers the vrf 0 (the default vrf) as the dominating vrf on which every route is stored. Enabling a prefix to be hICN will copy all the routes in the vrf 0 for the given prefi, in the vrf HICN. Every modification made on the vrf 0 on an hICN enabled prefix is reflected in the vrf hICN (through the use of the fib entry tracking functionality). Moreover, we use the lookup in the vrf hICN as a way for punting packet that must be processed as hICN. The implementation will install a special dpo as a single next hop for the vpp load balancer for each entry in the vrf hICN that we enabled. Such dpo will have two purposes: 1) to punt packets to the hICN forwarding pipeline, 2) to point to the righe strategy (the dpoi_index will be an index to the strategy context while the dpoi_type will be an index to the strategy vft).

Additionally, hICN assign each interface to the vrf hICN; this is required for the interest lookup. Vpp performs a lookup in the vrf assigned to the interface, therefore if an interface is not assigned to the hICN vrf, the lookup will be done on the vrf 0 and the packet won't be processed through the hicn forwarding pipeline.

Function Documentation

hicn_route_disable()

int hicn_route_disable

(

fib_prefix_t *

prefix

)

@Brief Disable an hICN for an ip prefix. If hICN wasn't enable on the prefix nothing happens and it returns HICN_ERROR_ROUTE_NOT_FOUND

Parameters

prefix

Prefix for which we disable hICN

hicn_route_enable()

int hicn_route_enable

(

fib_prefix_t *

prefix

)

@Brief Enable an hICN for an ip prefix

Parameters

prefix

Prefix for which we enable hICN

Returns

HICN_ERROR_NONE if hICN was enabled on the prefix HICN_ERROR_ROUTE_NO_LD if the first dpo for the fib entry corresponding to the prefix is not a load_balancer HICN_ERROR_ROUTE_DPO_NO_HICN if the loadbalancer in the vrf HICN already contains a dpo which is not an hICN one HICN_ERROR_ROUTE_MLT_LD if there are more than a dpo in the vpp loadbalancer

hicn_route_get_dpo()

int hicn_route_get_dpo	(	const fib_prefix_t *	prefix,
		const dpo_id_t **	hicn_dpo,
		u32 *	fib_index
	)

@Brief Return the hicn_dpo corresponding to the prefix in teh vrf HICN

Parameters

prefix	Prefix for which we want to retrieve the hICN dpo
hicn_dpo	return value with the hicn_dpo
fib_index	return value with the fib index corresponding to the prefix

hicn_route_set_strategy()

int hicn_route_set_strategy	(	fib_prefix_t *	prefix,
		u32	strategy_id
	)

@Brief Set the strategy for a given prefix

Parameters

prefix	Prefix for which we set the strategy
stretegy_id	Index of the strategy to set

ip_nh_add_helper()

int ip_nh_add_helper	(	fib_protocol_t	fib_proto,
		const fib_prefix_t *	pfx,
		ip46_address_t *	nh,
		u32	sw_if
	)

@Brief Helper to add a nex hop in the vrf 0. If there are no entries in the vrf 0 that matches with the prefix (epm), a new one is created.

Parameters

fib_proto	FIB_PROTOCOL_IP6 or FIB_PROTOCOL_IP4 (mpls not supported)
pfx	Prefix for which to add a next hop
nh	Next hop to add
sw_if	Software interface index to add in the next hop

ip_nh_del_helper()

int ip_nh_del_helper	(	fib_protocol_t	fib_proto,
		const fib_prefix_t *	rpfx,
		ip46_address_t *	nh,
		u32	sw_if
	)

@Brief Helper to remove a nex hop in the vrf 0. If there are no entries in the vrf 0 nothing happens.

Parameters

fib_proto	FIB_PROTOCOL_IP6 or FIB_PROTOCOL_IP4 (mpls not supported)
pfx	Prefix for which to remove a next hop
nh	Next hop to remove
sw_if	Software interface index in the next hop definition
