#include <vnet/fib/fib_node.h>
#include <vnet/vnet.h>
#include <vlib/vlib.h>
#include <vnet/ip/ip46_address.h>
#include <vnet/dpo/dpo.h>
#include <vnet/adj/adj_types.h>
#include <vppinfra/bihash_8_8.h>
#include <vnet/adj/adj_midchain.h>
#include "../error.h"

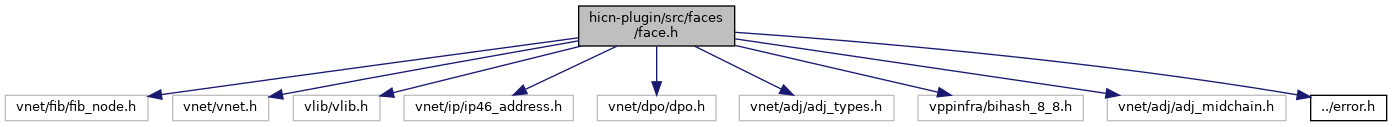

Include dependency graph for face.h:

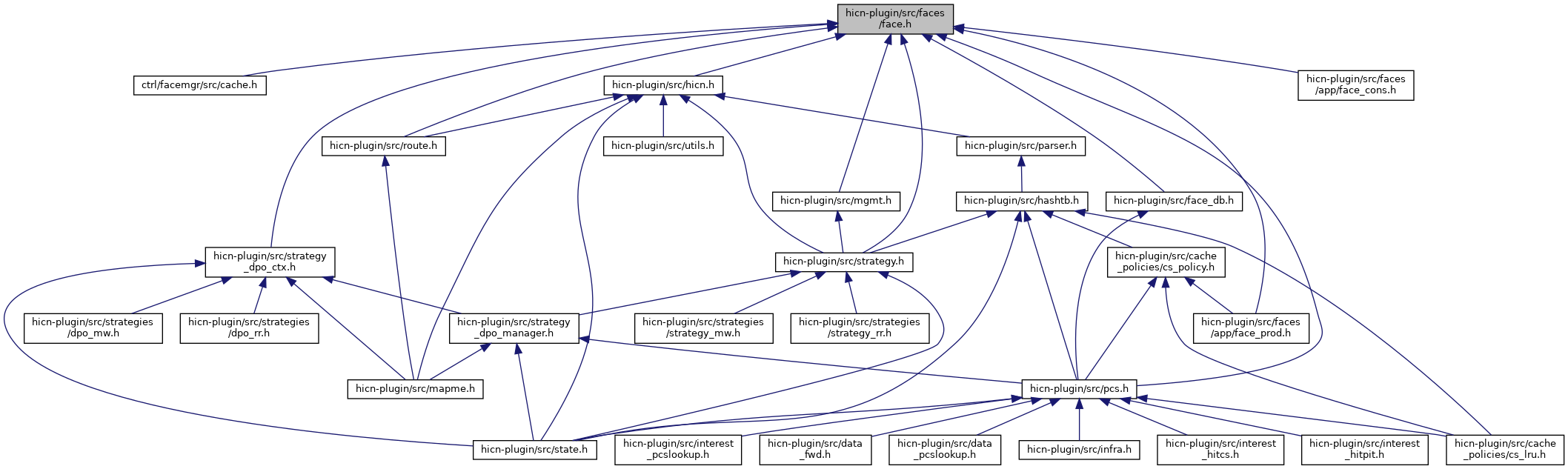

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	hicn_face_vft_s
	Definition of the virtual functin table for an hICN FACE DPO. More...

struct	hicn_input_faces_s_

Macros
#define	HICN_FACE_FLAGS_DEFAULT 0x00

#define	HICN_FACE_FLAGS_FACE 0x01

#define	HICN_FACE_FLAGS_IFACE 0x02

#define	HICN_FACE_FLAGS_APPFACE_PROD 0x04 /* Currently only IP face can be appface */

#define	HICN_FACE_FLAGS_APPFACE_CONS 0x08 /* Currently only IP face can be appface */

#define	HICN_FACE_FLAGS_DELETED 0x10

#define	HICN_FACE_NULL (hicn_face_id_t) ~0

#define	HICN_FACE_FLAGS_APPFACE_PROD_BIT 2

#define	HICN_FACE_FLAGS_APPFACE_CONS_BIT 3

#define	HICN_BUFFER_FLAGS_DEFAULT 0x00

#define	HICN_BUFFER_FLAGS_FACE_IS_APP 0x01

#define	foreach_hicn_face_counter

#define	_(a, b, c) HICN_FACE_COUNTERS_##a = (b),

#define	get_face_counter_string(ctrxno) (char *) (HICN_FACE_CTRX_STRING[ctrxno])

Typedefs
typedef u8	hicn_face_flags_t

typedef index_t	hicn_face_id_t

typedef struct hicn_face_vft_s	hicn_face_vft_t
	Definition of the virtual functin table for an hICN FACE DPO.

typedef hicn_face_id_t *	hicn_face_vec_t

typedef struct hicn_input_faces_s_	hicn_face_input_faces_t

Enumerations
enum	hicn_face_counters_t { HICN_N_COUNTER }

Functions
struct	__attribute__ ((packed)) hicn_face_s
	Structure representing a face. It containes the fields shared among all the types of faces as well it leaves some space for storing additional information specific to each type. More...

	STATIC_ASSERT ((1<< HICN_FACE_FLAGS_APPFACE_PROD_BIT)==HICN_FACE_FLAGS_APPFACE_PROD, "HICN_FACE_FLAGS_APPFACE_PROD_BIT and " "HICN_FACE_FLAGS_APPFACE_PROD must correspond")

	STATIC_ASSERT ((1<< HICN_FACE_FLAGS_APPFACE_CONS_BIT)==HICN_FACE_FLAGS_APPFACE_CONS, "HICN_FACE_FLAGS_APPFACE_CONS_BIT and " "HICN_FACE_FLAGS_APPFACE_CONS must correspond")

	STATIC_ASSERT ((HICN_FACE_FLAGS_APPFACE_PROD >> HICN_FACE_FLAGS_APPFACE_PROD_BIT)==HICN_BUFFER_FLAGS_FACE_IS_APP, "hicn buffer app flag does not correspond to HICN_FACE_FLAGS_APPFACE_PROD")

	STATIC_ASSERT ((HICN_FACE_FLAGS_APPFACE_CONS >> HICN_FACE_FLAGS_APPFACE_CONS_BIT)==HICN_BUFFER_FLAGS_FACE_IS_APP, "hicn buffer app flag does not correspond to HICN_FACE_FLAGS_APPFACE_PROD")

always_inline hicn_face_id_t	hicn_dpoi_get_index (hicn_face_t *face_dpoi)
	Return the face id from the face object. More...

always_inline hicn_face_t *	hicn_dpoi_get_from_idx_safe (hicn_face_id_t dpoi_index)
	Return the face object from the face id. This method is robust to invalid face id. More...

always_inline hicn_face_t *	hicn_dpoi_get_from_idx (hicn_face_id_t dpoi_index)
	Return the face from the face id. Face id must be valid. More...

always_inline int	hicn_dpoi_idx_is_valid (hicn_face_id_t face_id)
	Return true if the face id belongs to an existing face.

always_inline void	hicn_face_lock_with_id (hicn_face_id_t face_id)
	Add a lock to the face dpo. More...

always_inline void	hicn_face_unlock_with_id (hicn_face_id_t face_id)
	Remove a lock to the face dpo. Deallocate the face id locks == 0. More...

always_inline void	hicn_face_lock (dpo_id_t *dpo)
	Add a lock to the face through its dpo. More...

always_inline void	hicn_face_unlock (dpo_id_t *dpo)
	Remove a lock to the face through its dpo. Deallocate the face id locks == 0. More...

void	hicn_face_module_init (vlib_main_t *vm)
	Init the internal structures of the face module. More...

u8 *	format_hicn_face (u8 s, va_list args)

u8 *	format_hicn_face_all (u8 *s, int n,...)
	Format all the existing faces. More...

int	hicn_face_del (hicn_face_id_t face_id)
	Delete a face. More...

always_inline void	hicn_face_get_key (const ip46_address_t addr, u32 sw_if, const dpo_id_t dpo, hicn_face_key_t *key)
	Create the key object for the mhash. Fill in the key object with the expected values. More...

always_inline hicn_face_t *	hicn_face_get (const ip46_address_t addr, u32 sw_if, mhash_t hashtb, index_t adj_index)
	Get the face obj from the nat address. Does not add any lock. More...

always_inline hicn_face_t *	hicn_face_get_with_dpo (const ip46_address_t addr, u32 sw_if, const dpo_id_t dpo, mhash_t *hashtb)
	Get the face obj from the nat address and the dpo. Does not add any lock. More...

always_inline hicn_face_input_faces_t *	hicn_face_get_vec (const ip46_address_t addr, mhash_t hashtb)
	Get the vector of faces from the ip v4 address. Does not add any lock. More...

int	hicn_face_add (const dpo_id_t dpo_nh, ip46_address_t nat_address, int sw_if, hicn_face_id_t *pfaceid, u8 is_app_prod)
	Create a new face ip. API for other modules (e.g., routing) More...

always_inline void	hicn_iface_add (ip46_address_t nat_address, int sw_if, hicn_face_id_t pfaceid, dpo_proto_t proto, u32 adj_index)
	Create a new incomplete face ip. (Meant to be used by the data plane) More...

always_inline int	hicn_face_ip4_lock (hicn_face_id_t face_id, u32 in_faces_vec_id, u8 hicnb_flags, const ip4_address_t nat_addr)
	Retrieve a vector of faces from the ip4 local address and returns its index. More...

always_inline int	hicn_face_ip6_lock (hicn_face_id_t face_id, u32 in_faces_vec_id, u8 hicnb_flags, const ip6_address_t nat_addr)
	Retrieve a face from the ip6 local address and returns its dpo. This method adds a lock on the face state. More...

always_inline void	hicn_iface_ip4_add_and_lock (hicn_face_id_t index, u8 hicnb_flags, const ip4_address_t *nat_addr, u32 sw_if, u32 adj_index, u32 node_index)
	Retrieve, or create if it doesn't exist, a face from the ip6 local address and returns its dpo. This method adds a lock on the face state. More...

always_inline void	hicn_iface_ip6_add_and_lock (hicn_face_id_t index, u8 hicnb_flags, const ip6_address_t *nat_addr, u32 sw_if, u32 adj_index, u32 node_index)
	Retrieve, or create if it doesn't exist, a face from the ip6 local address and returns its dpo. This method adds a lock on the face state. More...

Variables
	hicn_face_t

hicn_face_t *	hicn_dpoi_face_pool

mhash_t	hicn_face_hashtb

const char *	HICN_FACE_CTRX_STRING []

dpo_id_t *	face_dpo_vec

hicn_face_vft_t *	face_vft_vec

char **	face_type_names_vec

u8	pl_index

dpo_type_t	first_type

vlib_combined_counter_main_t *	counters

hicn_face_vec_t *	hicn_vec_pool

mhash_t	hicn_face_vec_hashtb

	hicn_face_key_t

Detailed Description

This file implements a general face type. The purpose of a face is to carry the needed information to forward interest and data packets to the next node in the network. There are two type of faces: complete faces (in short faces), and incomplete faces (in short ifaces).

A face that does not contain the indication of the adjacency is an incomplete face (iface), otherwise it is considered to be complete. Ifaces are used to forward data back to the previous hICN hop from which we received an interest, while faces are used to forward interest packets to the next hicn node. Faces and ifaces are created at two different points in time. Faces are created when a route is added, while ifaces are created when an interest is received. In details, faces and ifaces carry the following information:

nat_addr: the ip address to perform src nat or dst nat on interest and data packets, respectively;
pl_id: the path label
locks: the number of entities using this face. When 0 the face can be deallocated
dpo: the dpo that identifies the next node in the vlib graph for processing the vlib buffer. The dpo contains the dpo.dpoi_next field that points to the next node in the vlib graph and the dpo.dpoi_index which is an index to adj used by the next node to perform the l2 rewrite. In case of ifaces, it is likely we don't know the adjacency when creting the face. In this case, the next node in the vlib graph will be the node that performs a lookup in the fib. Only in case of udp tunnels, which are bidirectional tunnel we know that the incoming tunnel is also the outgoing one, therefore in this case we store the tunnel in the dpo.dpoi_index fields. For all the other tunnels (which are most likely unidirectional), the source address of the interest will be used to retrieve the outgoing tunnel when sending the corresponding data back.
sw_if: the incoming interface of the interest
fib_node, fib_entry_index and fib_sibling are information used to be notified of changes in the adjacency pointed by the dpo.

We maintain two hash tables to retrieve faces and ifaces. In particular one hash table which index faces and ifaces for nat_address, sw_if and dpo. This is used to retrieve existing faces or ifaces when an interest is received and when an new face is created. A second hash table that indexes vectors of faces for nat_address and sw_if. This is used to retrieve a list of possible incoming faces when a data is received.

Macro Definition Documentation

◆ foreach_hicn_face_counter

#define foreach_hicn_face_counter

Value:

  _ (INTEREST_RX, 0, "Interest rx")                                           \
  _ (INTEREST_TX, 1, "Interest tx")                                           \
  _ (DATA_RX, 2, "Data rx")                                                   \
  _ (DATA_TX, 3, "Data tx")

Typedef Documentation

◆ hicn_face_vec_t

typedef hicn_face_id_t* hicn_face_vec_t

@bried vector of faces used to collect faces having the same local address

Function Documentation

◆ attribute()

struct __attribute__ ( (packed) )

Structure representing a face. It containes the fields shared among all the types of faces as well it leaves some space for storing additional information specific to each type.

Key definition for the mhash table. An face is uniquely identified by ip address, the interface id and a dpo pointing to the next node in the vlib graph. The ip address can correspond to the remote ip address of the next hicn hop, or to the local address of the receiving interface. The former is used to retrieve the incoming face when an interest is received, the latter when the arring packet is a data. If the face is a regular face In case of iface, the following structure can be filled in different ways:

dpo equal to DPO_INVALID when the iface is a regular hICN iface
in case of udp_tunnel dpo = { .dpoi_index = tunnel_id, .dpoi_type = DPO_FIRST, //We don't need the type, we leave it invalid .dpoi_proto = DPO_PROTO_IP4 or DPO_PROTO_IP6, .dpoi_next_node = HICN6_IFACE_OUTPUT_NEXT_UDP4_ENCAP or HICN6_IFACE_OUTPUT_NEXT_UDP6_ENCAP or HICN4_IFACE_OUTPUT_NEXT_UDP4_ENCAP or HICN4_IFACE_OUTPUT_NEXT_UDP6_ENCAP }

◆ format_hicn_face_all()

u8* format_hicn_face_all	(	u8 *	s,
		int	n,
			...
	)

Format all the existing faces.

Parameters

s	Pointer to a previous string. If null it will be initialize
n	Number of input parameters

Returns: String with the faces formatted

◆ hicn_dpoi_get_from_idx()

always_inline hicn_face_t* hicn_dpoi_get_from_idx ( hicn_face_id_t dpoi_index )

Return the face from the face id. Face id must be valid.

Parameters

dpoi_index Face identifier

Returns: Pointer to the face

◆ hicn_dpoi_get_from_idx_safe()

always_inline hicn_face_t* hicn_dpoi_get_from_idx_safe ( hicn_face_id_t dpoi_index )

Return the face object from the face id. This method is robust to invalid face id.

Parameters

dpoi_index Face identifier

Returns: Pointer to the face or NULL

◆ hicn_dpoi_get_index()

always_inline hicn_face_id_t hicn_dpoi_get_index ( hicn_face_t * face_dpoi )

Return the face id from the face object.

Parameters

Pointer to the face state

Returns: face id

◆ hicn_face_add()

int hicn_face_add	(	const dpo_id_t *	dpo_nh,
		ip46_address_t *	nat_address,
		int	sw_if,
		hicn_face_id_t *	pfaceid,
		u8	is_app_prod
	)

Create a new face ip. API for other modules (e.g., routing)

Parameters

dpo_nh	dpo contained in the face that points to the next node in the vlib graph
nat_addr	nat ip v4 or v6 address of the face
sw_if	interface associated to the face
pfaceid	Pointer to return the face id
is_app_prod	if HICN_FACE_FLAGS_APPFACE_PROD the face is a local application face, all other values are ignored

Returns: HICN_ERROR_FACE_NO_GLOBAL_IP if the face does not have a globally reachable ip address, otherwise HICN_ERROR_NONE

◆ hicn_face_del()

int hicn_face_del ( hicn_face_id_t face_id )

Delete a face.

Parameters

face_id Id of the face to delete

Returns: HICN_ERROR_FACE_NOT_FOUND if the face does not exist, otherwise HICN_ERROR_NONE

◆ hicn_face_get()

always_inline hicn_face_t* hicn_face_get	(	const ip46_address_t *	addr,
		u32	sw_if,
		mhash_t *	hashtb,
		index_t	adj_index
	)

Get the face obj from the nat address. Does not add any lock.

Parameters

addr	Ip v4 address used to create the key for the hash table.
sw_if	Software interface id used to create the key for the hash table.
hashtb	Hash table (remote or local) where to perform the lookup.

Returns: Pointer to the face.

◆ hicn_face_get_key()

always_inline void hicn_face_get_key	(	const ip46_address_t *	addr,
		u32	sw_if,
		const dpo_id_t *	dpo,
		hicn_face_key_t *	key
	)

Create the key object for the mhash. Fill in the key object with the expected values.

Parameters

addr	nat address of the face
sw_if	interface associated to the face
key	Pointer to an allocated hicn_face_ip_key_t object

◆ hicn_face_get_vec()

always_inline hicn_face_input_faces_t* hicn_face_get_vec	(	const ip46_address_t *	addr,
		mhash_t *	hashtb
	)

Get the vector of faces from the ip v4 address. Does not add any lock.

Parameters

addr	Ip v4 address used to create the key for the hash table.
sw_if	Software interface id used to create the key for the hash table.
hashtb	Hash table (remote or local) where to perform the lookup.

Returns: Pointer to the face.

◆ hicn_face_get_with_dpo()

always_inline hicn_face_t* hicn_face_get_with_dpo	(	const ip46_address_t *	addr,
		u32	sw_if,
		const dpo_id_t *	dpo,
		mhash_t *	hashtb
	)

Get the face obj from the nat address and the dpo. Does not add any lock.

Parameters

addr	Ip v4 address used to create the key for the hash table.
sw_if	Software interface id used to create the key for the hash table.
hashtb	Hash table (remote or local) where to perform the lookup.

Returns: Pointer to the face.

◆ hicn_face_ip4_lock()

always_inline int hicn_face_ip4_lock	(	hicn_face_id_t *	face_id,
		u32 *	in_faces_vec_id,
		u8 *	hicnb_flags,
		const ip4_address_t *	nat_addr
	)

Retrieve a vector of faces from the ip4 local address and returns its index.

Parameters

vec	Result of the lookup. If no face exists for the local address vec = NULL
hicnb_flags	Flags that indicate whether the face is an application face or not
local_addr	Ip v4 nat address of the face
sw_if	software interface id of the face

Returns: HICN_ERROR_FACE_NOT_FOUND if the face does not exist, otherwise HICN_ERROR_NONE.

◆ hicn_face_ip6_lock()

always_inline int hicn_face_ip6_lock	(	hicn_face_id_t *	face_id,
		u32 *	in_faces_vec_id,
		u8 *	hicnb_flags,
		const ip6_address_t *	nat_addr
	)

Retrieve a face from the ip6 local address and returns its dpo. This method adds a lock on the face state.

Parameters

dpo	Result of the lookup. If the face doesn't exist dpo = NULL
hicnb_flags	Flags that indicate whether the face is an application face or not
nat_addr	Ip v6 nat address of the face
sw_if	software interface id of the face

Returns: HICN_ERROR_FACE_NOT_FOUND if the face does not exist, otherwise HICN_ERROR_NONE.

◆ hicn_face_lock()

always_inline void hicn_face_lock ( dpo_id_t * dpo )

Add a lock to the face through its dpo.

Parameters

dpo	Pointer to the face dpo

◆ hicn_face_lock_with_id()

always_inline void hicn_face_lock_with_id ( hicn_face_id_t face_id )

Add a lock to the face dpo.

Parameters

dpo	Pointer to the face dpo

◆ hicn_face_module_init()

void hicn_face_module_init ( vlib_main_t * vm )

Init the internal structures of the face module.

Must be called before processing any packet

◆ hicn_face_unlock()

always_inline void hicn_face_unlock ( dpo_id_t * dpo )

Remove a lock to the face through its dpo. Deallocate the face id locks == 0.

Parameters

dpo	Pointer to the face dpo

◆ hicn_face_unlock_with_id()

always_inline void hicn_face_unlock_with_id ( hicn_face_id_t face_id )

Remove a lock to the face dpo. Deallocate the face id locks == 0.

Parameters

dpo	Pointer to the face dpo

◆ hicn_iface_add()

always_inline void hicn_iface_add	(	ip46_address_t *	nat_address,
		int	sw_if,
		hicn_face_id_t *	pfaceid,
		dpo_proto_t	proto,
		u32	adj_index
	)

Create a new incomplete face ip. (Meant to be used by the data plane)

Parameters

local_addr	Local ip v4 or v6 address of the face
remote_addr	Remote ip v4 or v6 address of the face
sw_if	interface associated to the face
pfaceid	Pointer to return the face id

Returns: HICN_ERROR_FACE_NO_GLOBAL_IP if the face does not have a globally reachable ip address, otherwise HICN_ERROR_NONE

◆ hicn_iface_ip4_add_and_lock()

always_inline void hicn_iface_ip4_add_and_lock	(	hicn_face_id_t *	index,
		u8 *	hicnb_flags,
		const ip4_address_t *	nat_addr,
		u32	sw_if,
		u32	adj_index,
		u32	node_index
	)

Retrieve, or create if it doesn't exist, a face from the ip6 local address and returns its dpo. This method adds a lock on the face state.

Parameters

dpo	Result of the lookup
hicnb_flags	Flags that indicate whether the face is an application face or not
nat_addr	Ip v4 remote address of the face
sw_if	software interface id of the face
node_index	vlib edge index to use in the packet processing

◆ hicn_iface_ip6_add_and_lock()

always_inline void hicn_iface_ip6_add_and_lock	(	hicn_face_id_t *	index,
		u8 *	hicnb_flags,
		const ip6_address_t *	nat_addr,
		u32	sw_if,
		u32	adj_index,
		u32	node_index
	)

Retrieve, or create if it doesn't exist, a face from the ip6 local address and returns its dpo. This method adds a lock on the face state.

Parameters

dpo	Result of the lookup
hicnb_flags	Flags that indicate whether the face is an application face or not
nat_addr	Ip v6 remote address of the face
sw_if	software interface id of the face
node_index	vlib edge index to use in the packet processing

Variable Documentation

◆ hicn_face_vec_hashtb

mhash_t hicn_face_vec_hashtb

Hash tables that indexes a face by remote address. For fast lookup when an interest arrives.

◆ hicn_vec_pool

hicn_face_vec_t* hicn_vec_pool

Pool containing the vector of possible incoming faces.

Classes

Macros

Typedefs

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ foreach_hicn_face_counter

Typedef Documentation

◆ hicn_face_vec_t

Function Documentation

◆ __attribute__()

◆ format_hicn_face_all()

◆ hicn_dpoi_get_from_idx()

◆ hicn_dpoi_get_from_idx_safe()

◆ hicn_dpoi_get_index()

◆ hicn_face_add()

◆ hicn_face_del()

◆ hicn_face_get()

◆ hicn_face_get_key()

◆ hicn_face_get_vec()

◆ hicn_face_get_with_dpo()

◆ hicn_face_ip4_lock()

◆ hicn_face_ip6_lock()

◆ hicn_face_lock()

◆ hicn_face_lock_with_id()

◆ hicn_face_module_init()

◆ hicn_face_unlock()

◆ hicn_face_unlock_with_id()

◆ hicn_iface_add()

◆ hicn_iface_ip4_add_and_lock()

◆ hicn_iface_ip6_add_and_lock()

Variable Documentation

◆ hicn_face_vec_hashtb

◆ hicn_vec_pool

◆ attribute()
