message.h File Reference

Message is the unit of forwarding, i.e. the packets being switched. More...

#include <hicn/hicn-light/config.h>
#include <hicn/core/logger.h>
#include <hicn/core/messagePacketType.h>
#include <hicn/core/streamBuffer.h>
#include <hicn/core/name.h>
#include <parc/algol/parc_EventBuffer.h>
#include <parc/algol/parc_EventQueue.h>
#include <hicn/utils/address.h>
#include <hicn/core/ticks.h>

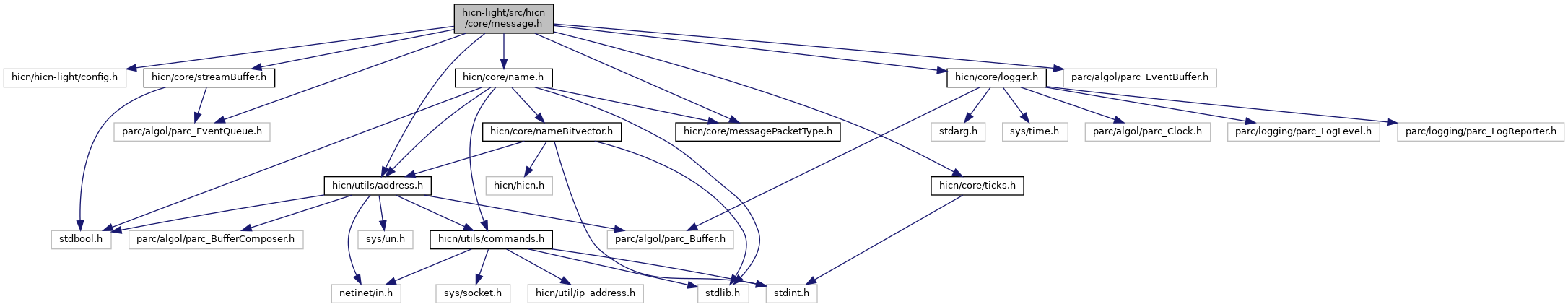

Include dependency graph for message.h:

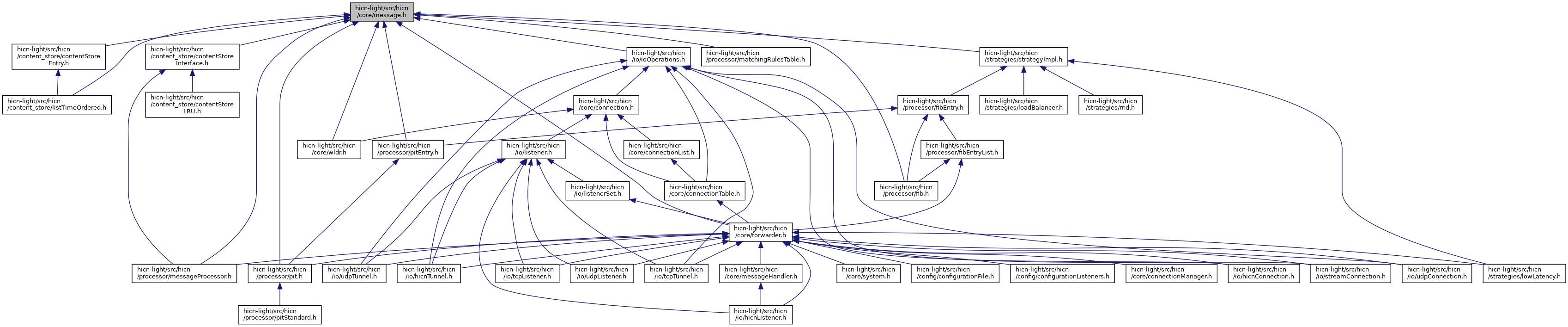

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct message	Message

Functions
Message *	message_CreateFromEventBuffer (PARCEventBuffer *data, size_t dataLength, unsigned ingressConnectionId, Ticks receiveTime, Logger *logger)
Message *	message_CreateFromByteArray (unsigned connid, uint8_t *pckt, MessagePacketType type, Ticks receiveTime, Logger *logger)
Message *	message_Acquire (const Message *message)
void	message_Release (Message **messagePtr)
bool	message_Write (PARCEventQueue *parcEventQueue, const Message *message)
size_t	message_Length (const Message *message)
bool	message_HasWldr (const Message *message)
bool	message_IsWldrNotification (const Message *message)
void	message_ResetWldrLabel (Message *message)
unsigned	message_GetWldrLabel (const Message *message)
unsigned	message_GetWldrExpectedLabel (const Message *message)
unsigned	message_GetWldrLastReceived (const Message *message)
void	message_SetWldrLabel (Message *message, uint16_t label)
Message *	message_CreateWldrNotification (Message *original, uint16_t expected, uint16_t lastReceived)
unsigned	message_GetIngressConnectionId (const Message *message)
void	message_SetIngressConnectionId (Message *message, unsigned conn)
Ticks	message_GetReceiveTime (const Message *message)
MessagePacketType	message_GetType (const Message *message)
uint32_t	message_GetPathLabel (const Message *message)
void	message_SetPathLabel (Message *message, uint32_t label)
void	message_UpdatePathLabel (Message *message, uint8_t outFace)
void	message_ResetPathLabel (Message *message)
Name *	message_GetName (const Message *message)
bool	message_HasInterestLifetime (const Message *message)
uint64_t	message_GetInterestLifetimeTicks (const Message *message)
bool	message_HasContentExpiryTime (const Message *message)
uint64_t	message_GetContentExpiryTimeTicks (const Message *message)
const uint8_t *	message_FixedHeader (const Message *message)

Detailed Description

Message is the unit of forwarding, i.e. the packets being switched.

Function Documentation

message_Acquire()

Message* message_Acquire

(

const Message *

message

)

@function message_Copy @abstract Get a reference counted copy

message_CreateFromByteArray()

Message* message_CreateFromByteArray	(	unsigned	connid,
		uint8_t *	pckt,
		MessagePacketType	type,
		Ticks	receiveTime,
		Logger *	logger
	)

@function message_CreateFromByteArray @abstract create a message from a byte array

message_CreateFromEventBuffer()

Message* message_CreateFromEventBuffer	(	PARCEventBuffer *	data,
		size_t	dataLength,
		unsigned	ingressConnectionId,
		Ticks	receiveTime,
		Logger *	logger
	)

@function message_CreateFromBuffer @abstract Takes ownership of the input buffer, which comprises one complete message

message_FixedHeader()

const uint8_t* message_FixedHeader

(

const Message *

message

)

Returns a pointer to the beginning of the FixedHeader

Parameters

[in]

message

An allocated and parsed Message

Returns

non-null The fixed header memory

null No fixed header or an error

message_GetContentExpiryTimeTicks()

uint64_t message_GetContentExpiryTimeTicks

(

const Message *

message

)

returns the moment (in hicn-light ticks) when the content object will expire

message_GetIngressConnectionId()

unsigned message_GetIngressConnectionId

(

const Message *

message

)

Returns the connection id of the packet input

message_GetInterestLifetimeTicks()

uint64_t message_GetInterestLifetimeTicks

(

const Message *

message

)

Returns the Interest lifetime in hicn-light Ticks

the interest expires after now + returned ticks

Parameters

[in]

message

An allocated and parsed Message

Return values

integer

Lifetime in forwarder Ticks

message_GetName()

Name* message_GetName

(

const Message *

message

)

@function message_GetName @abstract The name in the message @discussion The name of the Interest or Content Object. If the caller will store the name, he should make a reference counted copy.

Returns

The name as stored in the message object.

message_GetReceiveTime()

Ticks message_GetReceiveTime

(

const Message *

message

)

Returns the receive time (in router ticks) of the message

message_GetType()

MessagePacketType message_GetType

(

const Message *

message

)

Returns the PacketType

message_HasContentExpiryTime()

bool message_HasContentExpiryTime

(

const Message *

message

)

checks if the expiry time is set inside the content object

message_HasInterestLifetime()

bool message_HasInterestLifetime

(

const Message *

message

)

Determines if the message has an Interest Lifetime parameter

Parameters

[in]

message

An allocated and parsed Message

Return values

true	If an Intrerest Lifetime field exists
false	If no Interest Lifetime exists

message_Length()

size_t message_Length

(

const Message *

message

)

Returns the total byte length of the message

message_Release()

void message_Release

(

Message **

messagePtr

)

Releases the message and frees the memory

message_Write()

bool message_Write	(	PARCEventQueue *	parcEventQueue,
		const Message *	message
	)

Writes the message to the queue
