facelet.h File Reference

Facelet. More...

#include <stdbool.h>
#include <hicn/ctrl/face.h>
#include <hicn/ctrl/route.h>

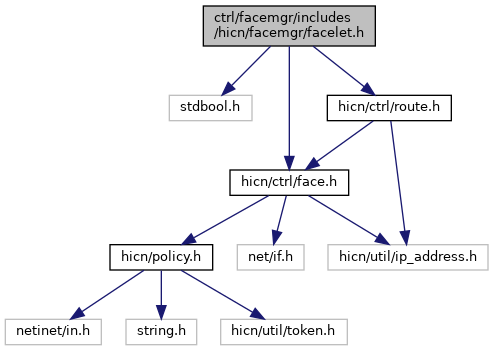

Include dependency graph for facelet.h:

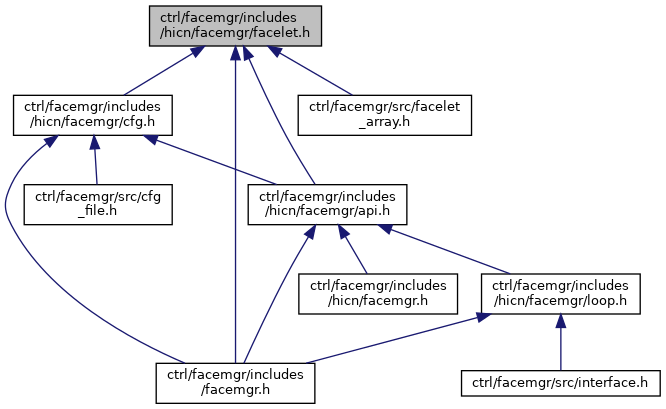

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	facemgr_face_type_t

Macros
#define	MAXSZ_FACELET   1024
#define	FACELET_MAX_ERRORS   10
#define	IS_VALID_NETDEVICE(netdevice)   ((netdevice.index != 0) && (netdevice.name[0] != '\0'))
#define	foreach_face_type_layer
#define	_(x)   FACE_TYPE_LAYER_ ## x,
#define	foreach_face_type_encap
#define	_(x)   FACE_TYPE_ENCAP_ ## x,
#define	FACEMGR_FACE_TYPE_STR(x)   face_type_layer_str[x.layer], face_type_encap_str[x.encap]
#define	FACEMGR_FACE_TYPE_UNDEFINED
#define	FACEMGR_FACE_TYPE_NATIVE_UDP
#define	FACEMGR_FACE_TYPE_NATIVE_TCP
#define	FACEMGR_FACE_TYPE_OVERLAY_UDP
#define	FACEMGR_FACE_TYPE_OVERLAY_TCP
#define	foreach_facelet_status
#define	_(x)   FACELET_STATUS_ ## x,
#define	foreach_facelet_error_reason
#define	_(x)   FACELET_ERROR_REASON_ ## x,
#define	foreach_facelet_attr_status
#define	_(x, y)   FACELET_ATTR_STATUS_ ## x,
#define	foreach_facelet_attr
#define	foreach_facelet_event
#define	MAXSZ_EVENT__   10
#define	MAXSZ_EVENT_   MAXSZ_EVENT_ + 1
#define	_(x)   FACELET_EVENT_ ## x,
#define	FACELET_ACCESSORS_H(TYPE, NAME)
#define	_(TYPE, NAME)   FACELET_ACCESSORS_H(TYPE, NAME)
#define	DUMP_FACELET(msg, facelet)

Typedefs
typedef struct facelet_s	facelet_t

Enumerations
enum	face_type_layer_t { foreach_face_type_layer }
enum	face_type_encap_t { foreach_face_type_encap }
enum	facelet_status_t { foreach_facelet_status }
enum	facelet_error_reason_t { foreach_facelet_error_reason }
enum	facelet_attr_status_t { foreach_facelet_attr_status }
enum	facelet_event_t { foreach_facelet_event }
	Enumeration of the possible types of event.

Functions
facelet_t *	facelet_create ()
	Create a facelet.
facelet_t *	facelet_create_from_netdevice (netdevice_t *netdevice)
unsigned	facelet_get_id (facelet_t *facelet)
void	facelet_set_id (facelet_t *facelet, unsigned id)
int	facelet_validate_face (const facelet_t *facelet)
facelet_t *	facelet_create_from_face (face_t *face)
void	facelet_free (facelet_t *facelet)
facelet_t *	facelet_dup (const facelet_t *current_facelet)
int	facelet_cmp (const facelet_t *f1, const facelet_t *f2)
bool	facelet_equals (const facelet_t *facelet1, const facelet_t *facelet2)
bool	facelet_match (const facelet_t *facelet, const facelet_t *facelet_match)
bool	facelet_has_key (const facelet_t *facelet)
	Returns whether the specified facelet has all key attributes defined. More...
foreach_facelet_attr int	facelet_get_face (const facelet_t *facelet, face_t **pface)
int	facelet_merge (facelet_t *facelet, facelet_t *facelet_to_merge)
facelet_status_t	facelet_get_status (const facelet_t *facelet)
void	facelet_set_status (facelet_t *facelet, facelet_status_t status)
void	facelet_set_attr_clean (facelet_t *facelet)
void	facelet_set_error (facelet_t *facelet, facelet_error_reason_t reason)
void	facelet_unset_error (facelet_t *facelet)
bool	facelet_get_error (const facelet_t *facelet)
void	facelet_set_bj_done (facelet_t *facelet)
void	facelet_unset_bj_done (facelet_t *facelet)
bool	facelet_is_bj_done (const facelet_t *facelet)
void	facelet_set_au_done (facelet_t *facelet)
bool	facelet_is_au_done (const facelet_t *facelet)
facelet_event_t	facelet_get_event (const facelet_t *facelet)
void	facelet_set_event (facelet_t *facelet, facelet_event_t event)
int	facelet_add_route (facelet_t *facelet, hicn_route_t *route)
int	facelet_remove_route (facelet_t *facelet, hicn_route_t *route, hicn_route_t **route_removed)
int	facelet_clear_routes (facelet_t *facelet)
int	facelet_get_route_array (const facelet_t *facelet, hicn_route_t ***route_array)
int	facelet_snprintf (char *buf, size_t size, const facelet_t *facelet)
int	facelet_snprintf_json (char *buf, size_t size, const facelet_t *facelet, int indent)

Variables
const char *	face_type_layer_str []
const char *	face_type_encap_str []
const char *	facelet_status_str []
const char *	facelet_error_reason_str []
const char *	facelet_attr_status_str []
const char *	facelet_attr_status_str_short []
const char *	facelet_event_str []

Detailed Description

Facelet.

A facelet consists in partial information and annotations collected towards the contruction of the final face that will be sent to the forwarder.

It might also consist in a pattern allowing the deletion of a group of face for instance.

Macro Definition Documentation

DUMP_FACELET

#define DUMP_FACELET	(		msg,
			facelet
	)

Value:

    do {                 \
    char buf[MAXSZ_FACELET];                            \
    facelet_snprintf(buf, MAXSZ_FACELET, facelet);      \
    DEBUG("%s : %s", msg, buf);                         \
} while(0)

FACELET_ACCESSORS_H

#define FACELET_ACCESSORS_H	(		TYPE,
			NAME
	)

Value:

bool facelet_has_ ## NAME(const facelet_t * facelet);                           \
facelet_attr_status_t facelet_get_ ## NAME ## _status(const facelet_t * facelet);\
void facelet_set_ ## NAME ## _status(facelet_t * facelet,                       \
        facelet_attr_status_t status);                                          \
int facelet_get_ ## NAME(const facelet_t * facelet, TYPE * NAME);               \
int facelet_set_ ## NAME(facelet_t * facelet, TYPE NAME);                       \
int facelet_unset_ ## NAME(facelet_t * facelet);

FACEMGR_FACE_TYPE_NATIVE_TCP

#define FACEMGR_FACE_TYPE_NATIVE_TCP

Value:

    (facemgr_face_type_t) {    \
    .layer = FACE_TYPE_LAYER_3,                                 \
    .encap = FACE_TYPE_ENCAP_TCP,                               \
}

FACEMGR_FACE_TYPE_NATIVE_UDP

#define FACEMGR_FACE_TYPE_NATIVE_UDP

Value:

    (facemgr_face_type_t) {    \
    .layer = FACE_TYPE_LAYER_3,                                 \
    .encap = FACE_TYPE_ENCAP_UDP,                               \
}

FACEMGR_FACE_TYPE_OVERLAY_TCP

#define FACEMGR_FACE_TYPE_OVERLAY_TCP

Value:

    (facemgr_face_type_t) {   \
    .layer = FACE_TYPE_LAYER_4,                                 \
    .encap = FACE_TYPE_ENCAP_TCP,                               \
}

FACEMGR_FACE_TYPE_OVERLAY_UDP

#define FACEMGR_FACE_TYPE_OVERLAY_UDP

Value:

    (facemgr_face_type_t) {   \
    .layer = FACE_TYPE_LAYER_4,                                 \
    .encap = FACE_TYPE_ENCAP_UDP,                               \
}

FACEMGR_FACE_TYPE_UNDEFINED

#define FACEMGR_FACE_TYPE_UNDEFINED

Value:

    (facemgr_face_type_t) {     \
    .layer = FACE_TYPE_LAYER_UNDEFINED,                         \
    .encap = FACE_TYPE_ENCAP_UNDEFINED,                         \
}

foreach_face_type_encap

#define foreach_face_type_encap

Value:

    _(UNDEFINED)                \
    _(TCP)                      \
    _(UDP)                      \
    _(N)

foreach_face_type_layer

#define foreach_face_type_layer

Value:

    _(UNDEFINED)                \
    _(3)                        \
    _(4)                        \
    _(N)

foreach_facelet_attr

#define foreach_facelet_attr

Value:

    _(netdevice_type_t, netdevice_type)         \
    _(netdevice_t, netdevice)                   \
    _(int, family)                              \
    _(ip_address_t, local_addr)                 \
    _(u16, local_port)                          \
    _(ip_address_t, remote_addr)                \
    _(u16, remote_port)                         \
    _(face_state_t, admin_state)                \
    _(face_state_t, state)                      \
    _(facemgr_face_type_t, face_type)

foreach_facelet_attr_status

#define foreach_facelet_attr_status

Value:

    _(UNDEFINED, '?')                           \
    _(UNSET, 'X')                               \
    _(CLEAN, ' ')                               \
    _(DIRTY, '*')                               \
    _(PENDING, 'P')                             \
    _(CONFLICT, '!')                            \
    _(N, '-')

foreach_facelet_error_reason

#define foreach_facelet_error_reason

Value:

    _(UNDEFINED)                        \
    _(UNSPECIFIED_ERROR)                \
    _(FORWARDER_OFFLINE)                \
    _(PERMISSION_DENIED)                \
    _(INTERNAL_ERROR)                   \
    _(N)

foreach_facelet_event

#define foreach_facelet_event

Value:

    _(UNDEFINED)                \
    _(GET)                      \
    _(CREATE)                   \
    _(UPDATE)                   \
    _(DELETE)                   \
    _(SET_UP)                   \
    _(SET_DOWN)                 \
    _(N)

foreach_facelet_status

#define foreach_facelet_status

Value:

    _(UNDEFINED)                \
    _(DOWN)                     \
    _(UNCERTAIN)                \
    _(INCOMPLETE)               \
    _(CREATE)                   \
    _(CLEAN)                    \
    _(IGNORED)                  \
    _(UPDATE)                   \
    _(DELETE)                   \
    _(DELETED)                  \
    _(N)

Function Documentation

facelet_has_key()

bool facelet_has_key

(

const facelet_t *

facelet

)

Returns whether the specified facelet has all key attributes defined.

Key attributes are netdevice and family. If both are present, this allows to uniquely identify a facelet, otherwise it is a 'wildcard' facelet specification and might match several facelets.
