connection.h File Reference

Wrapper for different types of connections. More...

#include <hicn/hicn-light/config.h>
#include <hicn/core/connectionState.h>
#include <hicn/io/ioOperations.h>
#include <hicn/utils/address.h>

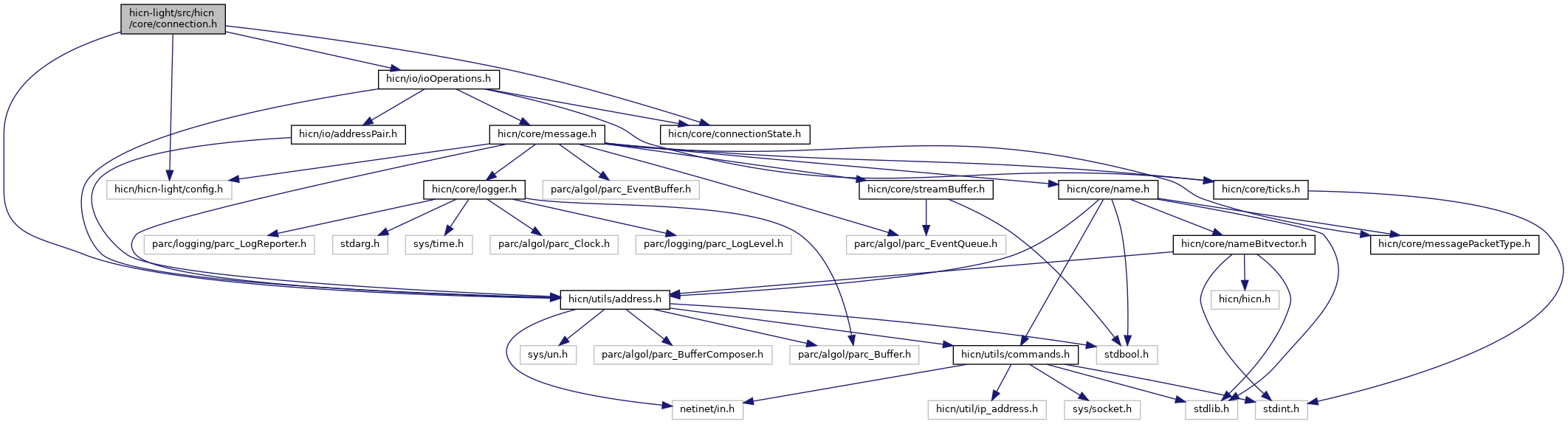

Include dependency graph for connection.h:

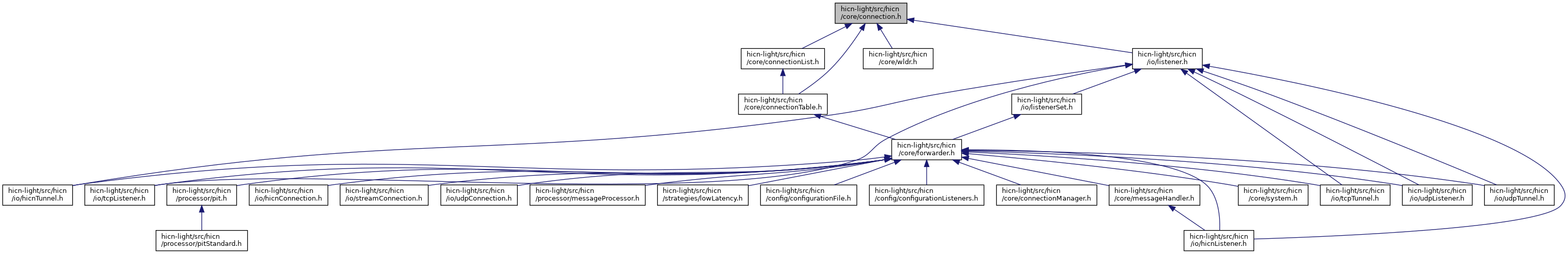

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct connection	Connection

Functions
Connection *	connection_Create (IoOperations *ops)
void	connection_Release (Connection **connectionPtr)
Connection *	connection_Acquire (Connection *connection)
bool	connection_Send (const Connection *conn, Message *message)
bool	connection_SendIOVBuffer (const Connection *conn, struct iovec *msg, size_t size)
bool	connection_SendBuffer (const Connection *conn, u8 *buffer, size_t length)
IoOperations *	connection_GetIoOperations (const Connection *conn)
unsigned	connection_GetConnectionId (const Connection *conn)
const AddressPair *	connection_GetAddressPair (const Connection *conn)
bool	connection_IsUp (const Connection *conn)
bool	connection_IsLocal (const Connection *conn)
const void *	connection_Class (const Connection *conn)
bool	connection_ReSend (const Connection *conn, Message *message, bool notification)
void	connection_Probe (Connection *conn, uint8_t *probe)
void	connection_HandleProbe (Connection *conn, uint8_t *message)
void	connection_AllowWldrAutoStart (Connection *conn, bool allow)
void	connection_EnableWldr (Connection *conn)
void	connection_DisableWldr (Connection *conn)
bool	connection_HasWldr (const Connection *conn)
bool	connection_WldrAutoStartAllowed (const Connection *conn)
void	connection_DetectLosses (Connection *conn, Message *message)
void	connection_HandleWldrNotification (Connection *conn, Message *message)
connection_state_t	connection_GetState (const Connection *conn)
void	connection_SetState (Connection *conn, connection_state_t state)
connection_state_t	connection_GetAdminState (const Connection *conn)
void	connection_SetAdminState (Connection *conn, connection_state_t admin_state)
const char *	connection_GetInterfaceName (const Connection *conn)

Detailed Description

Wrapper for different types of connections.

A connection wraps a specific set of IoOperations. Those operations allow for input and output. Connections get stored in the Connection Table.

Function Documentation

connection_Acquire()

Connection* connection_Acquire

(

Connection *

connection

)

@function connection_Acquire @abstract A reference counted copy. @discussion A shallow copy, they share the same memory.

connection_Class()

const void* connection_Class

(

const Connection *

conn

)

Returns an opaque pointer representing the class of the Io Operations

Returns an opaque pointer that an implementation can use to detect if the connection is based on that class.

Parameters

[in]

conn

The Connection to analyze

Returns

non-null An opaque pointer for each concrete implementation

connection_Create()

Connection* connection_Create

(

IoOperations *

ops

)

Creates a connection object.

connection_GetAddressPair()

const AddressPair* connection_GetAddressPair

(

const Connection *

conn

)

Returns the (remote, local) address pair that describes the connection

Parameters

[in]

connection

The allocated connection

Returns

non-null The connection's remote and local address

null Should never return NULL

connection_GetConnectionId()

unsigned connection_GetConnectionId

(

const Connection *

conn

)

Returns the unique identifier of the connection Calls the underlying IoOperations to fetch the connection id

Parameters

[in]

connection

The allocated connection

Returns

unsigned The unique connection id

connection_GetIoOperations()

IoOperations* connection_GetIoOperations

(

const Connection *

conn

)

Return the IoOperations instance associated with the specified Connection instance.

Parameters

[in]

connection

The allocated connection

Returns

a pointer to the IoOperations instance associated by th specified connection.

connection_IsLocal()

bool connection_IsLocal

(

const Connection *

conn

)

Checks if the connection is to a Local/Loopback address

A local connection is PF_LOCAL (PF_UNIX) and a loopback connection is 127.0.0.0/8 or ::1 for IPv6.

Parameters

[in]

connection

The allocated connection

Return values

true	The connection is local or loopback
false	The connection is not local or loopback

connection_IsUp()

bool connection_IsUp

(

const Connection *

conn

)

Checks if the connection is in the "up" state

Parameters

[in]

connection

The allocated connection

Returns

true The connection is in the "up" state

false The connection is not in the "up" state

connection_Release()

void connection_Release

(

Connection **

connectionPtr

)

@function connection_Release @abstract Releases a reference count, destroying on last release @discussion Only frees the memory on the final reference count. The pointer will always be NULL'd.

connection_Send()

bool connection_Send	(	const Connection *	conn,
		Message *	message
	)

@function connection_Send @abstract Sends the message on the connection

Returns

true if message sent, false if connection not up

connection_SendBuffer()

bool connection_SendBuffer	(	const Connection *	conn,
		u8 *	buffer,
		size_t	length
	)

@function connection_SendBuffer @abstract Sends a buffer

connection_SendIOVBuffer()

bool connection_SendIOVBuffer	(	const Connection *	conn,
		struct iovec *	msg,
		size_t	size
	)

@function connection_SendIOVBuffer @abstract Sends an IOV buffer
