Implementation of the compatibility layer. More...

#include "common.h"
#include "header.h"
#include "name.h"

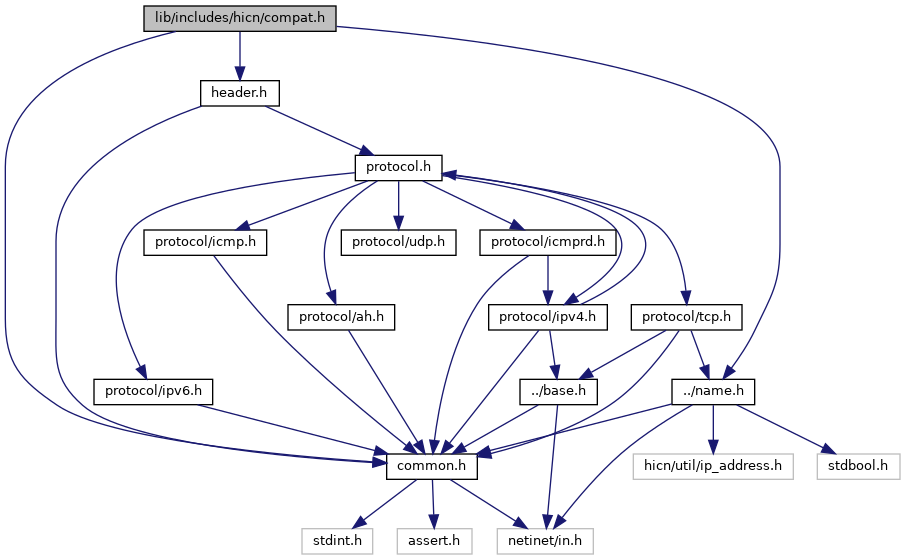

Include dependency graph for compat.h:

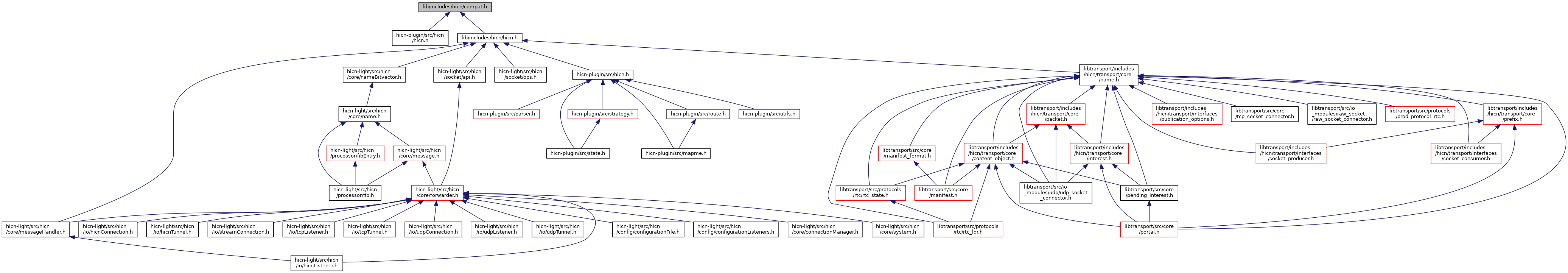

This graph shows which files directly or indirectly include this file:

Macros
#define	HFO_INET 1 << 0

#define	HFO_INET6 1 << 1

#define	HFO_TCP 1 << 2

#define	HFO_ICMP 1 << 3

#define	HFO_AH 1 << 4

#define	_is_ipv4(format) ((format & HFO_INET))

#define	_is_ipv6(format) ((format & HFO_INET6) >> 1)

#define	_is_tcp(format) ((format & HFO_TCP) >> 2)

#define	_is_icmp(format) ((format & HFO_ICMP) >> 3)

#define	_is_ah(format) ((format & HFO_AH) >> 4)

#define	HICN_V6_MIN_HDR_LEN 6 /* bytes */

#define	HICN_V4_MIN_HDR_LEN 4 /* bytes */

#define	HICN_MIN_HDR_LEN HICN_V6_MIN_HDR_LEN

Enumerations
enum	hicn_format_t { HF_UNSPEC = 0, HF_INET_TCP = HFO_INET \| HFO_TCP, HF_INET6_TCP = HFO_INET6 \| HFO_TCP, HF_INET_ICMP = HFO_INET \| HFO_ICMP, HF_INET6_ICMP = HFO_INET6 \| HFO_ICMP, HF_INET_TCP_AH = HFO_INET \| HFO_TCP \| HFO_AH, HF_INET6_TCP_AH = HFO_INET6 \| HFO_TCP \| HFO_AH, HF_INET_ICMP_AH = HFO_INET \| HFO_ICMP \| HFO_AH, HF_INET6_ICMP_AH = HFO_INET6 \| HFO_ICMP \| HFO_AH }

Functions
int	hicn_packet_init_header (hicn_format_t format, hicn_header_t *packet)
	Parse packet headers and return hICN format. More...

int	hicn_packet_get_format (const hicn_header_t packet, hicn_format_t format)
	Parse packet headers and return hICN format. More...

int	hicn_packet_compute_checksum (hicn_format_t format, hicn_header_t *packet)
	Update checksums in packet headers. More...

int	hicn_packet_compute_header_checksum (hicn_format_t format, hicn_header_t *packet, u16 init_sum)
	compute the checksum of the packet header, adding init_sum to the final value More...

int	hicn_packet_check_integrity_no_payload (hicn_format_t format, hicn_header_t *packet, u16 init_sum)
	Verify checksums in packet headers. More...

int	hicn_packet_get_header_length_from_format (hicn_format_t format, size_t *header_length)
	Return total length of hicn headers (but signature payload) More...

int	hicn_packet_get_header_length (hicn_format_t format, const hicn_header_t packet, size_t header_length)
	Return total length of hicn headers (before payload) More...

int	hicn_packet_get_payload_length (hicn_format_t format, const hicn_header_t packet, size_t payload_length)
	Return payload length. More...

int	hicn_packet_set_payload_length (hicn_format_t format, hicn_header_t *packet, const size_t payload_length)
	Sets payload length. More...

int	hicn_packet_compare (const hicn_header_t packet1, const hicn_header_t packet2)
	Compare two hICN packets. More...

int	hicn_packet_get_name (hicn_format_t format, const hicn_header_t packet, hicn_name_t name, u8 is_interest)
	Retrieve the name of an interest/data packet. More...

int	hicn_packet_set_name (hicn_format_t format, hicn_header_t packet, const hicn_name_t name, u8 is_interest)
	Sets the name of an interest/data packet. More...

int	hicn_packet_set_payload (hicn_format_t format, hicn_header_t packet, const u8 payload, u16 payload_length)
	Sets the payload of a packet. More...

int	hicn_packet_get_payload (hicn_format_t format, const hicn_header_t packet, u8 payload, size_t payload_size, bool hard_copy)
	Retrieves the payload of a packet. More...

int	hicn_packet_get_locator (hicn_format_t format, const hicn_header_t packet, ip_address_t prefix, bool is_interest)
	Retrieve the locator of an interest / data packet. More...

int	hicn_packet_set_locator (hicn_format_t format, hicn_header_t packet, const ip_address_t prefix, bool is_interest)
	Sets the locator of an interest / data packet. More...

int	hicn_packet_get_signature_size (hicn_format_t format, const hicn_header_t packet, size_t bytes)
	Retrieves the signature size. More...

int	hicn_packet_set_signature_size (hicn_format_t format, hicn_header_t *packet, size_t bytes)
	Sets the signature size. More...

int	hicn_packet_set_signature_timestamp (hicn_format_t format, hicn_header_t *h, uint64_t signature_timestamp)
	Sets the signature size. More...

int	hicn_packet_get_signature_timestamp (hicn_format_t format, const hicn_header_t h, uint64_t signature_timestamp)
	Sets the signature size. More...

int	hicn_packet_set_validation_algorithm (hicn_format_t format, hicn_header_t *h, uint8_t validation_algorithm)
	Sets the signature size. More...

int	hicn_packet_get_validation_algorithm (hicn_format_t format, const hicn_header_t h, uint8_t validation_algorithm)
	Sets the signature size. More...

int	hicn_packet_set_key_id (hicn_format_t format, hicn_header_t h, uint8_t key_id)
	Sets the signature size. More...

int	hicn_packet_get_key_id (hicn_format_t format, hicn_header_t h, uint8_t key_id, uint8_t key_id_length)
	Sets the signature size. More...

int	hicn_packet_get_hoplimit (const hicn_header_t packet, u8 hops)
	Retrieves the packet hop limit. More...

int	hicn_packet_set_hoplimit (hicn_header_t *packet, u8 hops)
	Sets the packet hop limit. More...

int	hicn_packet_copy_header (hicn_format_t format, const hicn_header_t packet, hicn_header_t destination, bool copy_ah)

int	hicn_packet_get_lifetime (const hicn_header_t packet, u32 lifetime)

int	hicn_packet_set_lifetime (hicn_header_t *packet, u32 lifetime)

int	hicn_packet_get_reserved_bits (const hicn_header_t packet, u8 reserved_bits)

int	hicn_packet_set_reserved_bits (hicn_header_t *packet, const u8 reserved_bits)

int	hicn_packet_get_payload_type (const hicn_header_t packet, hicn_payload_type_t payload_type)

int	hicn_packet_set_payload_type (hicn_header_t *packet, const hicn_payload_type_t payload_type)

int	hicn_packet_set_syn (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_reset_syn (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_test_syn (hicn_format_t format, const hicn_header_t packet, bool flag)

int	hicn_packet_set_ack (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_reset_ack (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_test_ack (hicn_format_t format, const hicn_header_t packet, bool flag)

int	hicn_packet_set_rst (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_reset_rst (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_test_rst (hicn_format_t format, const hicn_header_t packet, bool flag)

int	hicn_packet_set_fin (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_reset_fin (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_test_fin (hicn_format_t format, const hicn_header_t packet, bool flag)

int	hicn_packet_set_ece (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_reset_ece (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_test_ece (hicn_format_t format, const hicn_header_t packet, bool flag)

int	hicn_packet_set_src_port (hicn_format_t format, hicn_header_t *packet, u16 src_port)

int	hicn_packet_get_src_port (hicn_format_t format, const hicn_header_t packet, u16 src_port)

int	hicn_packet_set_dst_port (hicn_format_t format, hicn_header_t *packet, u16 dst_port)

int	hicn_packet_get_dst_port (hicn_format_t format, const hicn_header_t packet, u16 dst_port)

int	hicn_packet_get_signature (hicn_format_t format, hicn_header_t packet, uint8_t *sign_buf)

int	hicn_interest_get_name (hicn_format_t format, const hicn_header_t interest, hicn_name_t name)

int	hicn_interest_set_name (hicn_format_t format, hicn_header_t interest, const hicn_name_t name)

int	hicn_interest_get_locator (hicn_format_t format, const hicn_header_t interest, ip_address_t prefix)

int	hicn_interest_set_locator (hicn_format_t format, hicn_header_t interest, const ip_address_t prefix)

int	hicn_interest_compare (const hicn_header_t interest_1, const hicn_header_t interest_2)

int	hicn_interest_set_lifetime (hicn_header_t *interest, u32 lifetime)

int	hicn_interest_get_lifetime (const hicn_header_t interest, u32 lifetime)

int	hicn_interest_get_header_length (hicn_format_t format, const hicn_header_t interest, size_t header_length)

int	hicn_interest_get_payload_length (hicn_format_t format, const hicn_header_t interest, size_t payload_length)

int	hicn_interest_set_payload (hicn_format_t format, hicn_header_t interest, const u8 payload, size_t payload_length)

int	hicn_interest_get_payload (hicn_format_t format, const hicn_header_t interest, u8 payload, size_t payload_size, bool hard_copy)

int	hicn_interest_reset_for_hash (hicn_format_t format, hicn_header_t *packet)

int	hicn_data_get_name (hicn_format_t format, const hicn_header_t data, hicn_name_t name)

int	hicn_data_set_name (hicn_format_t format, hicn_header_t data, const hicn_name_t name)

int	hicn_data_get_locator (hicn_format_t format, const hicn_header_t data, ip_address_t prefix)

int	hicn_data_set_locator (hicn_format_t format, hicn_header_t data, const ip_address_t prefix)

int	hicn_data_compare (const hicn_header_t data_1, const hicn_header_t data_2)

int	hicn_data_get_expiry_time (const hicn_header_t data, u32 expiry_time)

int	hicn_data_set_expiry_time (hicn_header_t *data, u32 expiry_time)

int	hicn_data_get_header_length (hicn_format_t format, hicn_header_t data, size_t header_length)

int	hicn_data_get_payload_length (hicn_format_t format, const hicn_header_t data, size_t payload_length)

int	hicn_data_get_path_label (const hicn_header_t data, u32 path_label)

int	hicn_data_set_path_label (hicn_header_t *data, u32 path_label)

int	hicn_data_get_payload (hicn_format_t format, const hicn_header_t data, u8 payload, size_t payload_size, bool hard_copy)

int	hicn_data_set_payload (hicn_format_t format, hicn_header_t data, const u8 payload, size_t payload_length)

int	hicn_data_get_payload_type (const hicn_header_t data, hicn_payload_type_t payload_type)

int	hicn_data_set_payload_type (hicn_header_t *data, hicn_payload_type_t payload_type)

int	hicn_data_reset_for_hash (hicn_format_t format, hicn_header_t *packet)

int	hicn_packet_get_signature_gap (hicn_format_t format, const hicn_header_t h, uint8_t bytes)

int	hicn_packet_set_signature_gap (hicn_format_t format, hicn_header_t *h, uint8_t bytes)

Detailed Description

Implementation of the compatibility layer.

The structure of the core API has evolved to support operations of a variety of packet formats in addition to IPv4/TCP and IPv6/TCP, namely with the use of ICMP for signalization and AH headers for integrity. The new API format has been designed to scale better with the multiplicity of packet formats, and provide a unified interface on top. We maintain an interface for the former API in this file, which mainly acts as a wrapper on top of new calls.

Macro Definition Documentation

◆ HICN_V6_MIN_HDR_LEN

#define HICN_V6_MIN_HDR_LEN 6 /* bytes */

Minimum required header length to determine the type and length of a supposed hICN packet. This should be equal to the maximum value over all possible hICN packet formats, and less than the minimum possible IP packet size.

Function Documentation

◆ hicn_packet_check_integrity_no_payload()

int hicn_packet_check_integrity_no_payload	(	hicn_format_t	format,
		hicn_header_t *	packet,
		u16	init_sum
	)

Verify checksums in packet headers.

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header

Returns: hICN error code

◆ hicn_packet_compare()

int hicn_packet_compare	(	const hicn_header_t *	packet1,
		const hicn_header_t *	packet2
	)

Compare two hICN packets.

Parameters

[in]	packet_1	- First packet
[in]	packet_2	- Second packet

Returns: 0 if both packets are considered equal, any other value otherwise.

◆ hicn_packet_compute_checksum()

int hicn_packet_compute_checksum	(	hicn_format_t	format,
		hicn_header_t *	packet
	)

Update checksums in packet headers.

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header

Returns: hICN error code

◆ hicn_packet_compute_header_checksum()

int hicn_packet_compute_header_checksum	(	hicn_format_t	format,
		hicn_header_t *	packet,
		u16	init_sum
	)

compute the checksum of the packet header, adding init_sum to the final value

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header
[in]	init_sum	- value to add to the final checksum

Returns: hICN error code

◆ hicn_packet_get_format()

int hicn_packet_get_format	(	const hicn_header_t *	packet,
		hicn_format_t *	format
	)

Parse packet headers and return hICN format.

Parameters

[in]	h	- hICN header
[out]	format	- hICN format

Returns: hICN error code

◆ hicn_packet_get_header_length()

int hicn_packet_get_header_length	(	hicn_format_t	format,
		const hicn_header_t *	packet,
		size_t *	header_length
	)

Return total length of hicn headers (before payload)

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	header_length	- Total length of headers

Returns: hICN error code

◆ hicn_packet_get_header_length_from_format()

int hicn_packet_get_header_length_from_format	(	hicn_format_t	format,
		size_t *	header_length
	)

Return total length of hicn headers (but signature payload)

Parameters

[in]	format	- hICN format
[out]	header_length	- Total length of headers

Returns: hICN error code

◆ hicn_packet_get_hoplimit()

int hicn_packet_get_hoplimit	(	const hicn_header_t *	packet,
		u8 *	hops
	)

Retrieves the packet hop limit.

Parameters

[in]	packet	- packet header
[out]	hops	- Retrieved hop limit

Returns: hICN error code

◆ hicn_packet_get_key_id()

int hicn_packet_get_key_id	(	hicn_format_t	format,
		hicn_header_t *	h,
		uint8_t **	key_id,
		uint8_t *	key_id_length
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	key_id	- Retrieved key id

Returns: hICN error code

◆ hicn_packet_get_locator()

int hicn_packet_get_locator	(	hicn_format_t	format,
		const hicn_header_t *	packet,
		ip_address_t *	prefix,
		bool	is_interest
	)

Retrieve the locator of an interest / data packet.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	ip_address	- retrieved locator
[in]	is_interest	- Flag to determine whether it is an interest (1) or data packet (0)

Returns: hICN error code

◆ hicn_packet_get_name()

int hicn_packet_get_name	(	hicn_format_t	format,
		const hicn_header_t *	packet,
		hicn_name_t *	name,
		u8	is_interest
	)

Retrieve the name of an interest/data packet.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	name	- name holding the result
[in]	is_interest	- Flag to determine whether it is an interest (1) or data packet (0)

Returns: hICN error code

◆ hicn_packet_get_payload()

int hicn_packet_get_payload	(	hicn_format_t	format,
		const hicn_header_t *	packet,
		u8 **	payload,
		size_t *	payload_size,
		bool	hard_copy
	)

Retrieves the payload of a packet.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	payload	- pointer to buffer for storing the result
[out]	payload_length	- size of the retreived payload
[in]	hard_copy	- Flag : if true (eg. 1), a copy of the payload is made into the payload buffer, otherwise (0) the pointer is changed to point to the payload offset in the packet.

Returns: hICN error code

NOTE:

The buffer holding payload is assumed sufficiently large

◆ hicn_packet_get_payload_length()

int hicn_packet_get_payload_length	(	hicn_format_t	format,
		const hicn_header_t *	packet,
		size_t *	payload_length
	)

Return payload length.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	payload_length	- payload length

Returns: hICN error code

◆ hicn_packet_get_signature_size()

int hicn_packet_get_signature_size	(	hicn_format_t	format,
		const hicn_header_t *	packet,
		size_t *	bytes
	)

Retrieves the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	bytes	- Retrieved signature size

Returns: hICN error code

◆ hicn_packet_get_signature_timestamp()

int hicn_packet_get_signature_timestamp	(	hicn_format_t	format,
		const hicn_header_t *	h,
		uint64_t *	signature_timestamp
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	signature_timestamp	- Retrieved signature timestamp

Returns: hICN error code

◆ hicn_packet_get_validation_algorithm()

int hicn_packet_get_validation_algorithm	(	hicn_format_t	format,
		const hicn_header_t *	h,
		uint8_t *	validation_algorithm
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[out]	validation_algorithm	- Retrieved validation algorithm

Returns: hICN error code

◆ hicn_packet_init_header()

int hicn_packet_init_header	(	hicn_format_t	format,
		hicn_header_t *	packet
	)

Parse packet headers and return hICN format.

Parameters

[in]	format	- hICN Format
[in,out]	packet	- Buffer containing the hICN header to be initialized

Returns: hICN error code

◆ hicn_packet_set_hoplimit()

int hicn_packet_set_hoplimit	(	hicn_header_t *	packet,
		u8	hops
	)

Sets the packet hop limit.

Parameters

[in]	packet	- packet header
[in]	hops	- Hop limit to set

Returns: hICN error code

◆ hicn_packet_set_key_id()

int hicn_packet_set_key_id	(	hicn_format_t	format,
		hicn_header_t *	h,
		uint8_t *	key_id
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[in]	key_id	- Key id to set

Returns: hICN error code

◆ hicn_packet_set_locator()

int hicn_packet_set_locator	(	hicn_format_t	format,
		hicn_header_t *	packet,
		const ip_address_t *	prefix,
		bool	is_interest
	)

Sets the locator of an interest / data packet.

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header
[out]	ip_address	- retrieved locator
[in]	is_interest	- Flag to determine whether it is an interest (1) or data packet (0)

Returns: hICN error code

◆ hicn_packet_set_name()

int hicn_packet_set_name	(	hicn_format_t	format,
		hicn_header_t *	packet,
		const hicn_name_t *	name,
		u8	is_interest
	)

Sets the name of an interest/data packet.

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header
[in]	name	- name to set into packet
[in]	is_interest	- Flag to determine whether it is an interest (1) or data packet (0)

Returns: hICN error code

◆ hicn_packet_set_payload()

int hicn_packet_set_payload	(	hicn_format_t	format,
		hicn_header_t *	packet,
		const u8 *	payload,
		u16	payload_length
	)

Sets the payload of a packet.

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header
[in]	payload	- payload to set
[in]	payload_length	- size of the payload to set

Returns: hICN error code

NOTE:

The buffer holding payload is assumed sufficiently large
This function updates header fields with the new length, but no checksum.

◆ hicn_packet_set_payload_length()

int hicn_packet_set_payload_length	(	hicn_format_t	format,
		hicn_header_t *	packet,
		const size_t	payload_length
	)

Sets payload length.

Parameters

[in]	format	- hICN format
[in,out]	packet	- packet header
[in]	payload_length	- payload length

Returns: hICN error code

◆ hicn_packet_set_signature_size()

int hicn_packet_set_signature_size	(	hicn_format_t	format,
		hicn_header_t *	packet,
		size_t	bytes
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[in]	bytes	- Retrieved signature size

Returns: hICN error code

◆ hicn_packet_set_signature_timestamp()

int hicn_packet_set_signature_timestamp	(	hicn_format_t	format,
		hicn_header_t *	h,
		uint64_t	signature_timestamp
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[in]	signature_timestamp	- Signature timestamp to set

Returns: hICN error code

◆ hicn_packet_set_validation_algorithm()

int hicn_packet_set_validation_algorithm	(	hicn_format_t	format,
		hicn_header_t *	h,
		uint8_t	validation_algorithm
	)

Sets the signature size.

Parameters

[in]	format	- hICN format
[in]	packet	- packet header
[in]	validation_algorithm	- Validation algorithm to set

Returns: hICN error code

Macros

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ HICN_V6_MIN_HDR_LEN

Function Documentation

◆ hicn_packet_check_integrity_no_payload()

◆ hicn_packet_compare()

◆ hicn_packet_compute_checksum()

◆ hicn_packet_compute_header_checksum()

◆ hicn_packet_get_format()

◆ hicn_packet_get_header_length()

◆ hicn_packet_get_header_length_from_format()

◆ hicn_packet_get_hoplimit()

◆ hicn_packet_get_key_id()

◆ hicn_packet_get_locator()

◆ hicn_packet_get_name()

◆ hicn_packet_get_payload()

◆ hicn_packet_get_payload_length()

◆ hicn_packet_get_signature_size()

◆ hicn_packet_get_signature_timestamp()

◆ hicn_packet_get_validation_algorithm()

◆ hicn_packet_init_header()

◆ hicn_packet_set_hoplimit()

◆ hicn_packet_set_key_id()

◆ hicn_packet_set_locator()

◆ hicn_packet_set_name()

◆ hicn_packet_set_payload()

◆ hicn_packet_set_payload_length()

◆ hicn_packet_set_signature_size()

◆ hicn_packet_set_signature_timestamp()

◆ hicn_packet_set_validation_algorithm()
