transport::protocol::fec::rs Class Reference

#include <rs.h>

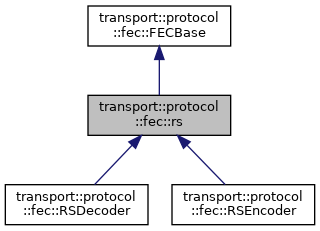

Inheritance diagram for transport::protocol::fec::rs:

Collaboration diagram for transport::protocol::fec::rs:

Public Member Functions
	rs (uint32_t k, uint32_t n, uint32_t seq_offset=0)
virtual void	clear ()
bool	isSymbol (uint32_t index)
Public Member Functions inherited from transport::protocol::fec::FECBase
virtual std::size_t	getFecHeaderSize ()=0
	Get size of FEC header.
template<typename Handler >
void	setFECCallback (Handler &&callback)
template<typename Handler >
void	setBufferCallback (Handler &&buffer_callback)
virtual void	reset ()=0

Protected Types
using	PacketsReady = std::function< void(std::vector< buffer > &)>
using	SNBase = std::uint32_t
using	SourceBlocks = std::unordered_map< SNBase, BlockCode >
using	Codes = std::unordered_map< Code, Matrix, CodeHasher >

Protected Member Functions
bool	processed (SNBase seq_base)
void	setProcessed (SNBase seq_base)

Protected Attributes
std::uint32_t	k_
std::uint32_t	n_
std::uint32_t	seq_offset_
std::unordered_set< SNBase >	processed_source_blocks_
Protected Attributes inherited from transport::protocol::fec::FECBase
PacketsReady	fec_callback_ {0}
BufferRequested	buffer_callback_ {0}

Static Protected Attributes
static Codes	codes_

Friends
class	BlockCode

Additional Inherited Members
Public Types inherited from transport::protocol::fec::FECBase
using	PacketsReady = std::function< void(BufferArray &)>
using	BufferRequested = std::function< buffer(std::size_t size)>

Detailed Description

This class contains common parameters between the fec encoder and decoder. In particular it contains:

• The callback to be called when symbols are encoded / decoded
• The reference to the static reed-solomon parameters, allocated at program startup
• N and K. Ideally they are useful only for the encoder (the decoder can retrieve them from the FEC header). However right now we assume sender and receiver agreed on the parameters k and n to use. We will introduce a control message later to negotiate them, so that decoder cah dynamically change them during the download.

Member Typedef Documentation

Codes

using transport::protocol::fec::rs::Codes = std::unordered_map<Code, Matrix, CodeHasher>

protected

Map (k, n) -> reed-solomon parameter

PacketsReady

using transport::protocol::fec::rs::PacketsReady = std::function<void(std::vector<buffer> &)>

protected

Callback to be called after the encode or the decode operations. In the former case it will contain the symbols, while in the latter the sources.

SNBase

using transport::protocol::fec::rs::SNBase = std::uint32_t

protected

The sequence number base.

SourceBlocks

using transport::protocol::fec::rs::SourceBlocks = std::unordered_map<SNBase, BlockCode>

protected

The map of source blocks, used at the decoder side. For the encoding operation we can use one source block only, since packet are produced in order.

Member Data Documentation

processed_source_blocks_

std::unordered_set<SNBase> transport::protocol::fec::rs::processed_source_blocks_

protected

Keep track of processed source blocks

---

The documentation for this class was generated from the following file:

• libtransport/src/protocols/fec/rs.h
