params.h File Reference

#include <math.h>

Include dependency graph for params.h:

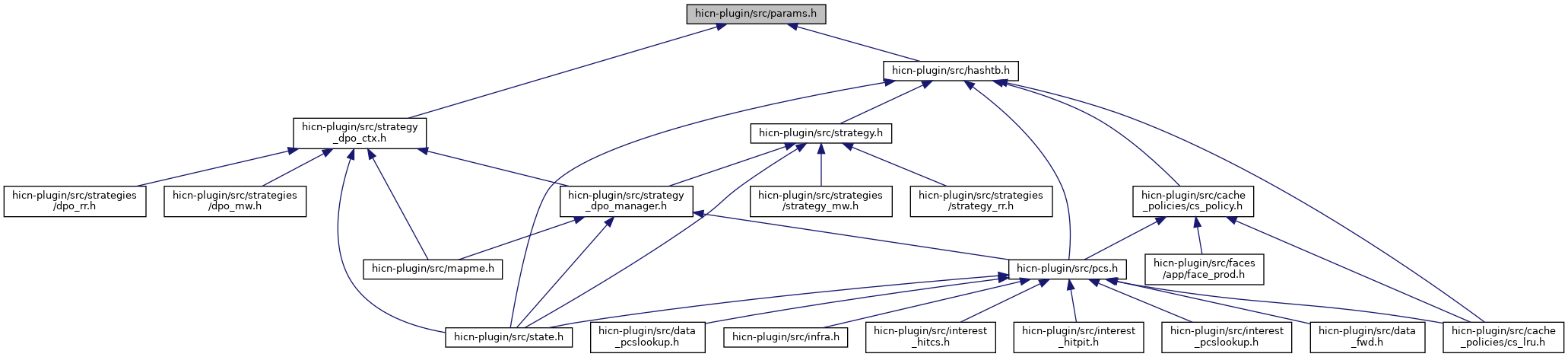

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	HICN_FEATURE_CS   1
#define	HICN_PARAM_FACES_MAX   512
#define	HICN_PARAM_HICN_NAME_LEN_MAX   20
#define	HICN_PARAM_FIB_ENTRY_NHOPS_MAX   10
#define	HICN_PARAM_FIB_ENTRY_NHOP_WGHT_DFLT   0x10
#define	HICN_PARAM_FIB_ENTRY_NHOP_WGHT_MAX   0xff
#define	HICN_PARAM_PIT_ENTRIES_MIN   1024
#define	HICN_PARAM_PIT_ENTRIES_DFLT   1024 * 128
#define	HICN_PARAM_PIT_ENTRIES_MAX   2 * 1024 * 1024
#define	HICN_PARAM_PIT_ENTRY_PHOPS_MAX   20
#define	HICN_PARAM_RTX_MAX   10
#define	HICN_PARAM_PIT_LIFETIME_BOUND_MIN_SEC   0
#define	HICN_PARAM_PIT_LIFETIME_BOUND_MAX_SEC   200
#define	HICN_PARAM_PIT_LIFETIME_DFLT_MAX_MS   20000
#define	HICN_PARAM_FACE_MAX_CS_RESERVED   20000
#define	HICN_PARAM_FACE_MIN_CS_RESERVED   0
#define	HICN_PARAM_FACE_DFT_CS_RESERVED   20000
#define	HICN_PARAM_CS_ENTRIES_MIN   0
#define	HICN_PARAM_CS_ENTRIES_DFLT   4 * 1024
#define	HICN_PARAM_CS_ENTRIES_MAX   1024 * 1024
#define	HICN_PARAM_CS_LRU_DEFAULT   (16 * 1024)
#define	HICN_PARAM_CS_LIFETIME_MIN   0
#define	HICN_PARAM_CS_LIFETIME_DFLT   (5 * 60 * 1000)
#define	HICN_PARAM_CS_LIFETIME_MAX   (24 * 3600 * 1000)
#define	HICN_PARAM_CS_RESERVED_APP   50
#define	HICN_PARAM_CS_MIN_MBUF   4096
#define	HICN_IP4_VERSION_HEADER_LENGTH   0x45
#define	HICN_IP4_PROTOCOL   IP_PROTOCOL_TCP
#define	HICN_IP4_TTL_DEFAULT   128
#define	IPV6_DEFAULT_VERSION   6
#define	IPV6_DEFAULT_TRAFFIC_CLASS   0
#define	IPV6_DEFAULT_FLOW_LABEL   0
#define	HCIN_IP6_VERSION_TRAFFIC_FLOW
#define	HICN_IP6_PROTOCOL   IP_PROTOCOL_TCP
#define	HICN_IP6_HOP_LIMIT   0x40

Functions
	STATIC_ASSERT ((HICN_PARAM_FACES_MAX &(HICN_PARAM_FACES_MAX - 1))==0, "HICN_PARAM_FACES_MAX must be a power of 2")
	STATIC_ASSERT ((ceil(log2((HICN_PARAM_PIT_ENTRY_PHOPS_MAX - 4))))==(floor(log2((HICN_PARAM_PIT_ENTRY_PHOPS_MAX - 4)))), "HICN_PARAM_PIT_ENTRY_PHOPS_MAX - 4 must be a power of two")
	STATIC_ASSERT ((HICN_PARAM_PIT_ENTRY_PHOPS_MAX<=HICN_PARAM_FACES_MAX), "HICN_PARAM_PIT_ENTRY_PHOP_MAX must be <= than HICN_PARAM_FACES_MAX")

Macro Definition Documentation

HCIN_IP6_VERSION_TRAFFIC_FLOW

#define HCIN_IP6_VERSION_TRAFFIC_FLOW

Value:

  (IPV6_DEFAULT_VERSION << 28) | (IPV6_DEFAULT_TRAFFIC_CLASS << 20) |         \
    (IPV6_DEFAULT_FLOW_LABEL & 0xfffff)
