mgmt.h File Reference

#include <vppinfra/error.h>
#include "faces/face.h"
#include "hicn_api.h"

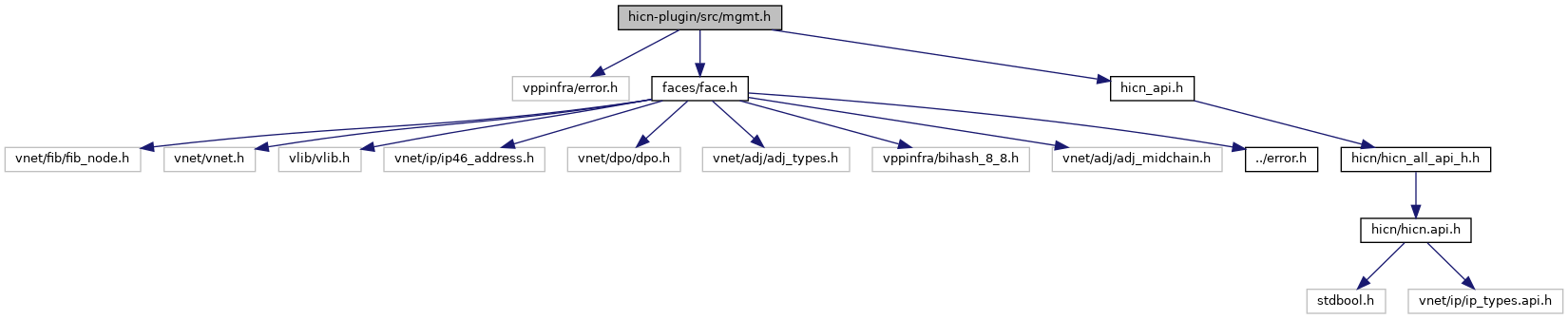

Include dependency graph for mgmt.h:

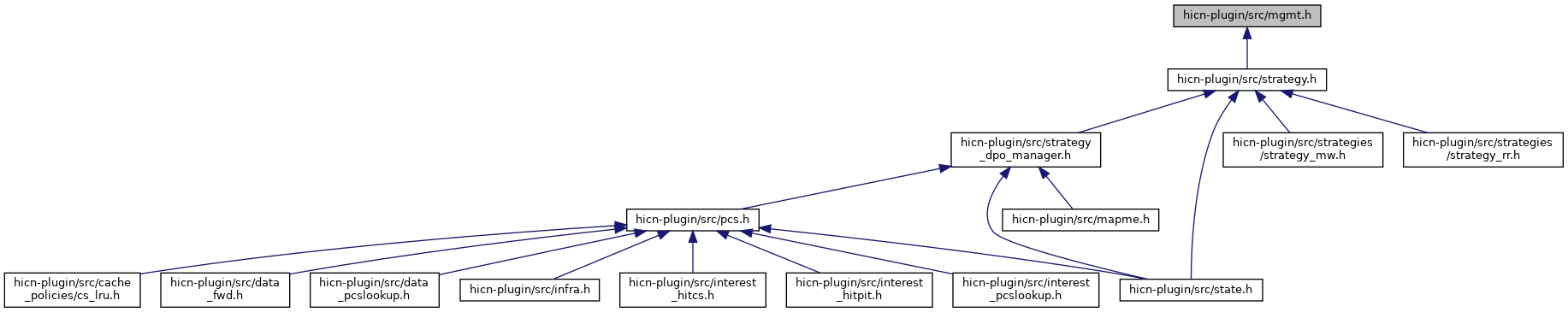

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	icn_stats_s

Macros
#define	foreach_hicnfwd_error
#define	_(sym, str)   HICNFWD_ERROR_##sym,

Typedefs
typedef struct icn_stats_s	icn_stats_t

Enumerations
enum	hicn_mgmt_face_op_e {   HICN_MGMT_FACE_OP_NONE = 0, HICN_MGMT_FACE_OP_CREATE, HICN_MGMT_FACE_OP_DELETE, HICN_MGMT_FACE_OP_ADMIN,   HICN_MGMT_FACE_OP_HELLO }
enum	hicn_mgmt_mapme_op_e {   HICN_MGMT_MAPME_OP_NONE = 0, HICN_MGMT_MAPME_OP_CREATE, HICN_MGMT_MAPME_OP_DELETE, HICN_MGMT_MAPME_OP_ENABLE,   HICN_MGMT_MAPME_OP_DISABLE }
enum	hicn_address_type_e { HICN_ADDRESS_TYPE_NONE, HICN_ADDRESS_TYPE_V4, HICN_ADDRESS_TYPE_V6 }
enum	hicnfwd_error_t { HICNFWD_N_ERROR }

Functions
always_inline void	update_node_counter (vlib_main_t *vm, u32 node_idx, u32 counter_idx, u64 val)
clib_error_t *	hicn_api_plugin_hookup (vlib_main_t *vm)
int	hicn_mgmt_node_stats_get (vl_api_hicn_api_node_stats_get_reply_t *rmp)

Macro Definition Documentation

foreach_hicnfwd_error

#define foreach_hicnfwd_error

Value:

  _ (PROCESSED, "hICN packets processed")                                     \
  _ (INTERESTS, "hICN interests forwarded")                                   \
  _ (DATAS, "hICN data msgs forwarded")                                       \
  _ (CACHED, "Cached data ")                                                  \
  _ (NO_PIT, "hICN no PIT entry drops")                                       \
  _ (PIT_EXPIRED, "hICN expired PIT entries")                                 \
  _ (CS_EXPIRED, "hICN expired CS entries")                                   \
  _ (CS_LRU, "hICN LRU CS entries freed")                                     \
  _ (NO_BUFS, "No packet buffers")                                            \
  _ (INTEREST_AGG, "Interests aggregated")                                    \
  _ (INTEREST_AGG_ENTRY, "Interest aggregated per entry")                     \
  _ (INT_RETRANS, "Interest retransmissions")                                 \
  _ (INT_COUNT, "Interests in PIT")                                           \
  _ (CS_COUNT, "CS total entries")                                            \
  _ (CS_NTW_COUNT, "CS ntw entries")                                          \
  _ (CS_APP_COUNT, "CS app entries")                                          \
  _ (HASH_COLL_HASHTB_COUNT, "Collisions in Hash table")
