messageProcessor.h File Reference

Executes the set of rules dictated by the PacketType. More...

#include <hicn/content_store/contentStoreInterface.h>
#include <hicn/core/forwarder.h>
#include <hicn/core/message.h>
#include <hicn/utils/commands.h>

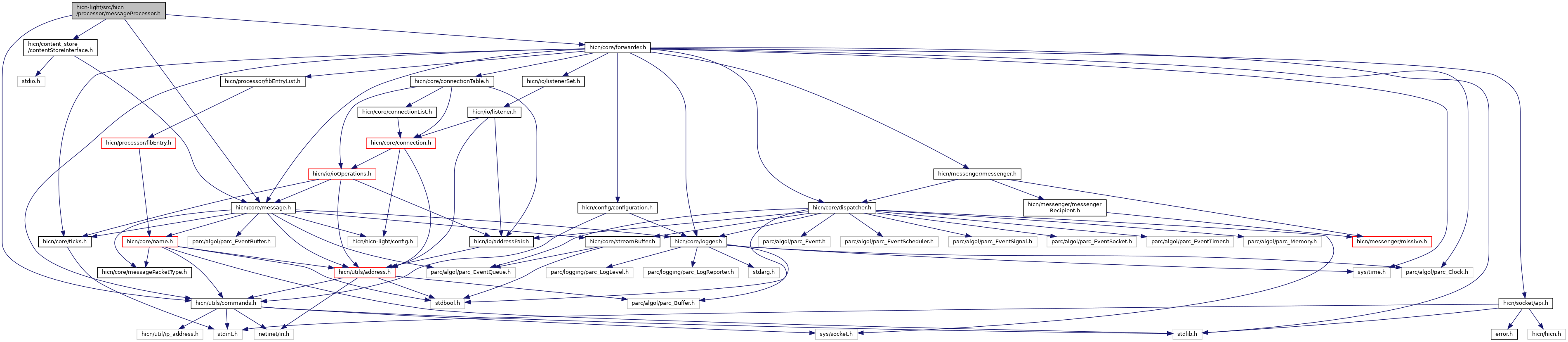

Include dependency graph for messageProcessor.h:

Go to the source code of this file.

Typedefs
typedef struct message_processor	MessageProcessor

Functions
MessageProcessor *	messageProcessor_Create (Forwarder *forwarder)
void	messageProcessor_Destroy (MessageProcessor **processorPtr)
void	messageProcessor_Receive (MessageProcessor *procesor, Message *message)
bool	messageProcessor_AddOrUpdateRoute (MessageProcessor *processor, add_route_command *control, unsigned ifidx)
bool	messageProcessor_RemoveRoute (MessageProcessor *processor, remove_route_command *control, unsigned ifidx)
void	messageProcessor_RemoveConnectionIdFromRoutes (MessageProcessor *processor, unsigned connectionId)
FibEntryList *	messageProcessor_GetFibEntries (MessageProcessor *processor)
void	messageProcessor_SetContentObjectStoreSize (MessageProcessor *processor, size_t maximumContentStoreSize)
ContentStoreInterface *	messageProcessor_GetContentObjectStore (const MessageProcessor *processor)
void	messageProcessor_SetCacheStoreFlag (MessageProcessor *processor, bool val)
bool	messageProcessor_GetCacheStoreFlag (MessageProcessor *processor)
void	messageProcessor_SetCacheServeFlag (MessageProcessor *processor, bool val)
bool	messageProcessor_GetCacheServeFlag (MessageProcessor *processor)
void	messageProcessor_ClearCache (MessageProcessor *processor)
void	processor_SetStrategy (MessageProcessor *processor, Name *prefix, strategy_type strategy, unsigned related_prefixes_len, Name **related_prefixes)

Detailed Description

Executes the set of rules dictated by the PacketType.

This is a "run-to-completion" handling of a message based on the PacketType.

The MessageProcessor also owns the PIT and FIB tables.

Function Documentation

messageProcessor_AddOrUpdateRoute()

bool messageProcessor_AddOrUpdateRoute	(	MessageProcessor *	processor,
		add_route_command *	control,
		unsigned	ifidx
	)

Adds or updates a route in the FIB

If the route already exists, it is replaced

Parameters

[in]	procesor	An allocated message processor
[in]	route	The route to update

Return values

true	added or updated
false	An error

messageProcessor_Create()

MessageProcessor* messageProcessor_Create

(

Forwarder *

forwarder

)

Allocates a MessageProcessor along with PIT, FIB and ContentStore tables

The hicn-light pointer is primarily used for logging (forwarder_Log), getting the configuration, and accessing the connection table.

Parameters

[in]

Pointer

to owning hicn-light process

Return values

non-null	An allocated message processor
null	An error

messageProcessor_Destroy()

void messageProcessor_Destroy

(

MessageProcessor **

processorPtr

)

Deallocates a message processor an all internal tables

Parameters

[in,out]

processorPtr

Pointer to message processor to de-allocate, will be NULL'd.

messageProcessor_GetContentObjectStore()

ContentStoreInterface* messageProcessor_GetContentObjectStore

(

const MessageProcessor *

processor

)

Return the interface to the currently instantiated ContentStore, if any.

Parameters

[in]

processor

the MessageProcessor from which to return the ContentStoreInterface.

messageProcessor_GetFibEntries()

FibEntryList* messageProcessor_GetFibEntries

(

MessageProcessor *

processor

)

Returns a list of all FIB entries

You must destroy the list.

Return values

non-null	The list of FIB entries
null	An error

messageProcessor_Receive()

void messageProcessor_Receive	(	MessageProcessor *	procesor,
		Message *	message
	)

@function messageProcessor_Receive @abstract Process the message, takes ownership of the memory. @discussion Will call destroy on the memory when done with it, so if the caller wants to keep it, make a reference counted copy.

Receive may modify some fields in the message, such as the HopLimit field.

messageProcessor_RemoveConnectionIdFromRoutes()

void messageProcessor_RemoveConnectionIdFromRoutes	(	MessageProcessor *	processor,
		unsigned	connectionId
	)

Removes a given connection id from all FIB entries

Iterates the FIB and removes the given connection ID from every route.

messageProcessor_RemoveRoute()

bool messageProcessor_RemoveRoute	(	MessageProcessor *	processor,
		remove_route_command *	control,
		unsigned	ifidx
	)

Removes a route from the FIB

Removes a specific nexthop for a route. If there are no nexthops left after the removal, the entire route is deleted from the FIB.

Parameters

[in]	procesor	An allocated message processor
[in]	route	The route to remove

Return values

true	Route completely removed
false	There is still a nexthop for the route

messageProcessor_SetContentObjectStoreSize()

void messageProcessor_SetContentObjectStoreSize	(	MessageProcessor *	processor,
		size_t	maximumContentStoreSize
	)

Adjusts the ContentStore to the given size.

This will destroy and re-create the content store, so any cached objects will be lost.
