face_db.h File Reference

#include <vnet/dpo/dpo.h>
#include "faces/face.h"

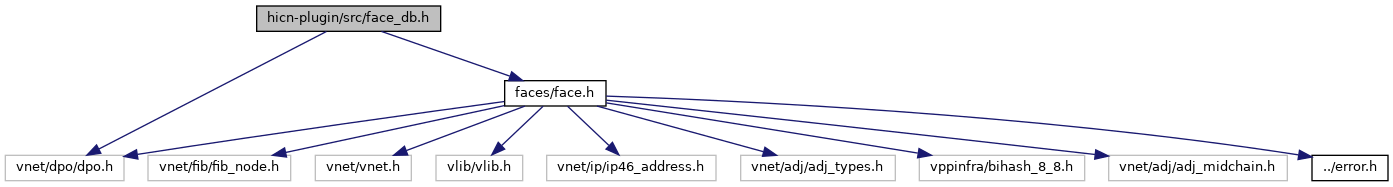

Include dependency graph for face_db.h:

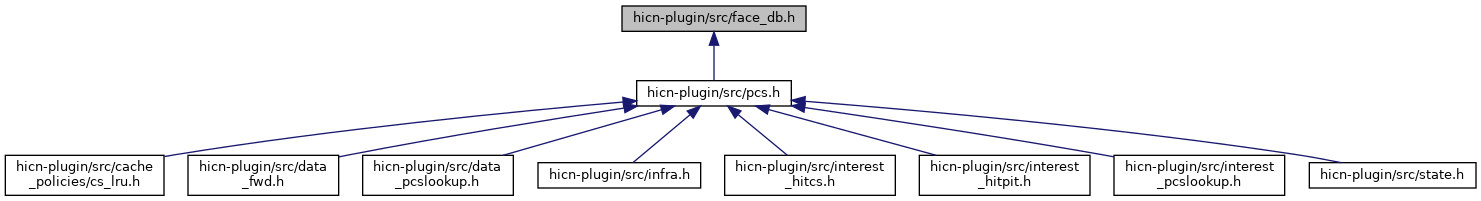

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	hicn_face_bucket_s

Macros
#define	HICN_FACE_DB_INLINE_FACES   8
#define	HICN_PIT_BITMAP_SIZE_BYTE   HICN_PARAM_FACES_MAX / 8
#define	HICN_PIT_N_HOP_BITMAP_SIZE   HICN_PARAM_FACES_MAX
#define	HICN_PIT_N_HOP_BUCKET   (HICN_PARAM_PIT_ENTRY_PHOPS_MAX - HICN_FACE_DB_INLINE_FACES)

Typedefs
typedef struct hicn_face_bucket_s	hicn_face_bucket_t

Functions
struct	__attribute__ ((packed)) hicn_face_db_s
always_inline hicn_face_id_t	hicn_face_db_get_dpo_face (u32 index, hicn_face_db_t *face_db)
always_inline void	hicn_face_db_init (int max_element)
always_inline hicn_face_bucket_t *	hicn_face_db_get_bucket (u32 bucket_index)
always_inline void	hicn_face_db_add_face (hicn_face_id_t face_id, hicn_face_db_t *face_db)
always_inline u8	hicn_face_search (hicn_face_id_t index, hicn_face_db_t *face_db)
always_inline void	hicn_faces_flush (hicn_face_db_t *face_db)

Variables
hicn_face_bucket_t *	hicn_face_bucket_pool
	hicn_face_db_t

Detailed Description

Define a face db that is store in every pit entry. A face db containes a list of incoming faces for interest packets that are used to forward data packets on the interests' reverse path
